Product Details:
|
| Material: | Cast Iron | Model: | 6 Inches |
|---|---|---|---|
| Gear Ratio: | 51:1 | Efficiency: | 40% |
| Precise: | ≤ 0.1 | Driver: | Electric Motor |
| Color: | Requested | Type: | Vertical Single |
| Highlight: | Rotation Solar Tracker Slew Drive,slew drive for solar tracker,6" Solar Tracker Slew Drive |
||

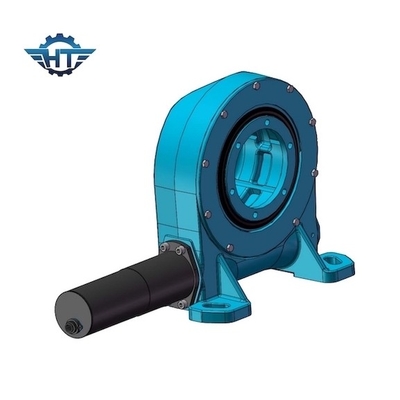

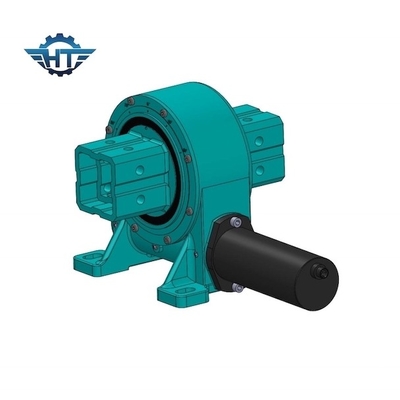

Full Circle Rotation Enclosed Worm Gear Slewing Drive For Vertical Single Axis Solar Tracking System
Enclosed Worm Gear Slewing Drive Description
6 inch slewing drive is our newly developed type which featured with high torque though its small size. A slewing drive is a compact design worm gear unit which is widely used on solar tracking systems. It features with self locking, small backlash, high back holding torque, easy installation, maintenence free etc.
Parameters of VE Model Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Advantages
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side,
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High accuracy
