Product Details:
|
| Material: | QT | Model: | SDE5 |
|---|---|---|---|
| Gear Ratio: | 57:1R | Output Torque: | 0.8 KNm |
| Holding Torque: | 6 KNm | Tilting Torque: | 9.2 KNm |
| Efficiency: | 40% | Work Temp.: | -30℃～+120℃ |
| Highlight: | slewing ring drive,worm drive motor |
||

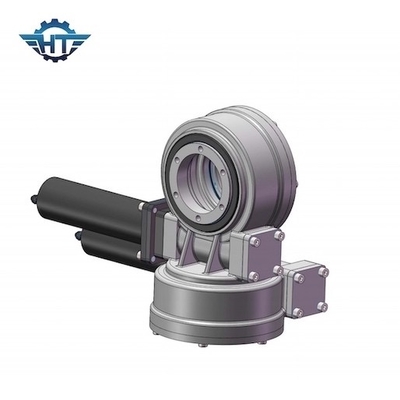

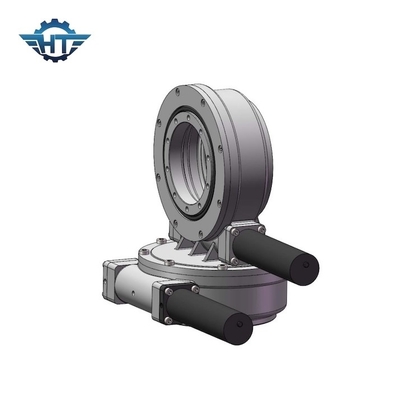

Enclosed Housing 5 Inch Worm Gear Slewing Drive For Solar Tracking System And Satellite
Worm Gear Slewing Drive Description
The slew drive is an upgraded product of slew bearings, which is usually composed of worm, turbo-type slew bearings, housing and power resource. Housing which use high-quality cast steel has a very high strength, worm gear uses 42CrMo and glow ion nitriding, its wear resistance strength is higher, hardness stronger and service life longer compared to the domestic traditional gas nitriding 50Mn material, and other domestic envelope worm. In the actual operation process, the slewing drive, as a transmission bearing component, has to bear great axial force, radial force and overturning moment. In order to meet the requirements of use, the solar thermal slewing drive needs to ensure sufficient strength and rigidity while having extremely high slewing accuracy.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
Advantages
1. Strong overturning moment based on slewing ring
2. Adopt enveloping worm drive
3. Drive larger load for using multi tooth contact
4. Better static self-locking function
