Product Details:
|
| Material: | QT | Model: | SDE7" |
|---|---|---|---|
| Gear Ratio: | 57:1 | Efficiency: | 40% |
| Standard Color: | RAL 9006 | Self-lock: | Yes |
| Warranty: | 5~10 Years | Application: | Satellite Antenna |
| Highlight: | slewing ring drive,worm drive motor |
||

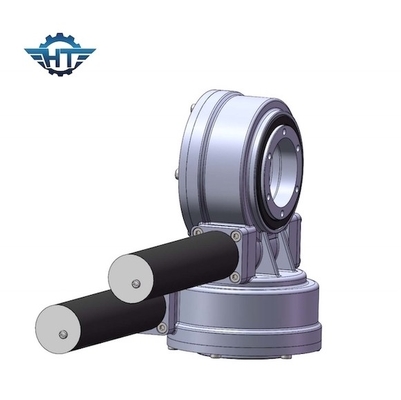

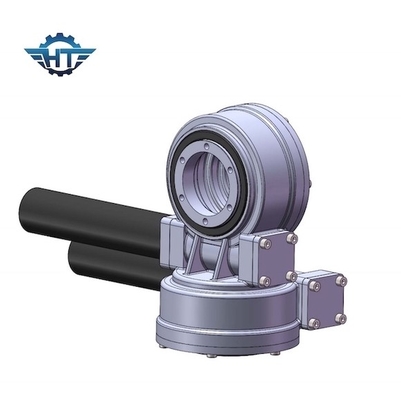

7 Inch Two Axis Small Slew Drive With 24VDC Gear Motor Or Nema For Satellite Antenna
Two Axis Small Slew Drive Description
The worm gear slew drive features better protective performance, great transmission torque, better impact resistance and long working life. The most common slewing drive application for the dual-axis slewing drives are dual-axis solar trackers, such as CSP (heliostats,also called tower), concentrated photovoltaics (CPV), satellite antenna or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment. Solar Tracker dual axis slew drive is perfect solution in the dual axis solar tracking applications.
Slew Drives Applied In Satellite Antenna
| Product Name | SDE7 Slewing drive |
| Output Torque | 980 N.m ; 723 ft.lbs |
| Max Output Torque | 1938 N.m; 1429 ft.lbs |
| Tilting Moment Torque | 7000 N.m; 5163 ft.lbs |
| Holding Torque | 13200 N.m ; 9736 ft.lbs |
| Static Axial Rating | 133.20 kN ; 29943 lb |
| Static Radial Rating | 53 kN ; 11977 lb |
| Dynamic Axial Rating | 31.90 kN ; 7171 lb |
| Dynamic Radial Rating | 27.91 kN ; 6274 lb |
| Motor Alternatives | 12V/24V Motor ; Stepper Motor ; Brushless Motor |
| Products Style | Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower |
| Application Feature | Solar Tracking System, Industrial Machinery |
| Solar System Square Meter | 30 ㎡ |
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Applicatons
Dual axis solar tracking system
Precision instruments
CPV
Dish
Satellite Antenna
