Product Details:
|
| Model: | SDE5" | Gear Ratio: | 37:1 |
|---|---|---|---|
| Output Torque: | 800 Nm | Holding Torque: | 6000 Nm |
| Tilting Torque: | 9200 Nm | Efficiency: | 40% |
| Color: | Siver Grey | Weight: | 34 Kg |
| Highlight: | Multi Tooth Contact Gear Slew Drive,Solar Trackers Small Slew Drive,24V Motor Solar Trackers Slew Drive |
||

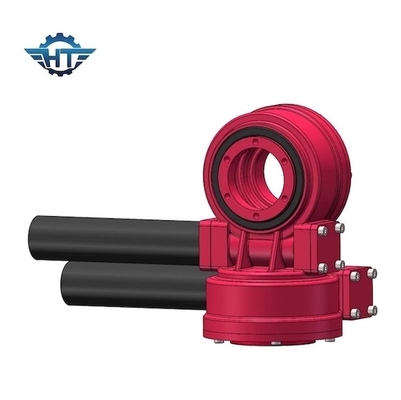

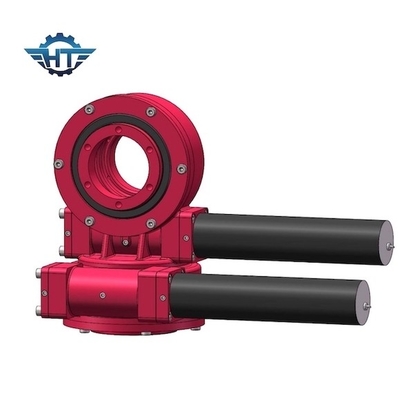

Multi Tooth Contact Dual Axis Small Slew Drive With 24V Motor For Long Life Solar Trackers
Dual Axis Small Slew Drive Description
The dual axis solar tracker uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller, making the system accurate and reliable, on rainy days, the light sensor will stop working and the time control starts. This will avoid random moving and achieving automatic tracking, without human intervention.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
The dual axis slew drive applied in dual axis solar tracking system:
| Product Name | SDE5 Slewing drive |
| Output Torque | 800 N.m |
| Tilting Moment Torque | 6000 N.m |
| Holding Torque | 9200 N.m |
| Static Axial Rating | 16 kN |
| Static Radial Rating | 27 kN |
| Motor Alternatives | 12V/24V Motor ; Stepper Motor ; Brushless Motor; Brushed Motor |
| Products Style | Dual Axis Solar System, Heliostat(CSP tower heat power station) |
| Solar System Square Meter | 15 ㎡ |
Application
Slew drives are widely used in solar industry, truck cranes, man lifts, utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts.
Contact Person: Mr. Tommy Zhang
Tel: +86-18961639799
