Product Details:
|
| Material: | QT | Model: | SDE3" |
|---|---|---|---|
| Gear Ratio: | 31:1 | Rated Output Torque: | 600 Nm |
| Holding Torque: | 5800 Nm | Tilting Torque: | 1800 Nm |
| Efficiency: | 40% | Standard Color: | RAL 9006 |
| Highlight: | Gear Ratio Solar Tracker Slew Drive,600 Nm Solar Tracking Slew Drive,PV Solar Tracking Slew Drive |
||

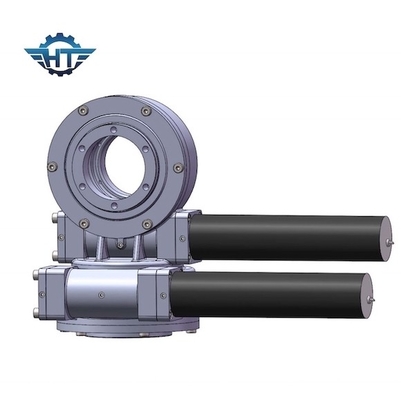

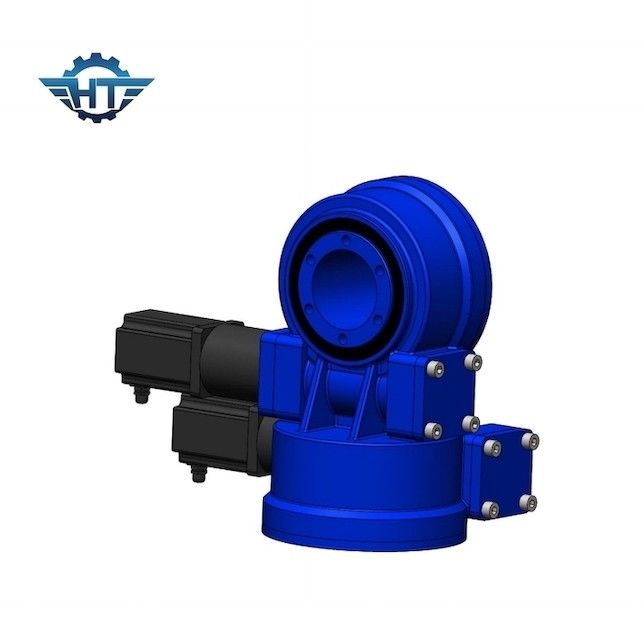

Different Gear Ratio Dual Axis Slew Drive With Motor For PV Solar Tracking System
Dual Axis Slew Drive Description
Slewing drive can realize unlimited circumferential rotation and speed reduction, and can withstand larger axial force, radial force and overturning force. It enjoys advantages of high accuracy, compact structure and large carrying capacity.
With a worm and gear struction, he slew drive have the advantages of self-locking, better protective performance, great transmission torque, better impact resistance and long working life.
VE Model Performance Parameters
|
VE Model Performance Parameters |
||||||||||||
|
Model |
Rated Output Torque (N.m) |
Holding Torque (kN.m) |
Tilting Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio |
Efficiency |
Precision (Degree) |
IP |
Working Tep(℃) |
Self-locking |
Weight(kg) |
|
3" |
806 |
9 |
5 |
22 |
15 |
31:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
12kg |
|
5" |
962 |
30 |
6 |
16 |
27 |
37:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
18kg |
|
7" |
7344 |
60 |
10 |
34 |
58 |
51:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
32kg |
|
8" |
8000 |
70 |
14 |
50 |
80 |
50:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
28kg |
|
9" |
8784 |
80 |
16 |
60 |
130 |
61:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
52kg |
|
12" |
11232 |
100 |
25 |
77 |
190 |
78:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
65kg |
|
14" |
12240 |
120 |
48 |
110 |
230 |
85:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
88 kg |
|
17" |
14688 |
136 |
67 |
142 |
390 |
102:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
135 kg |
|
21" |
18000 |
140 |
89 |
337 |
640 |
125:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
192 kg |
|
25" |
21600 |
150 |
112 |
476 |
950 |
150:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
251 kg |
Our Advantages
1. Our technical team is focusing on slewing drive design and develop for more than 10 years
2. Strict process control, leading test methods, cargo traceability
3. Professional techical service team to solve any problem of slewing drive
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
