Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | SDE17 |
|---|---|---|---|
| Rotate Type: | Dual Axis | Feature: | Quick Installation |
| Output Torque: | 9460 Nm | Tilting Torque: | 67000 Nm |
| Holding Torque: | 53040 Nm | Inspect Report: | Yes |
| Highlight: | Enclosed Gear Motor Worm Slew Drive,High Precision Worm Slew Drive,Solar Tracking Slew Drive Dual Axis |
||

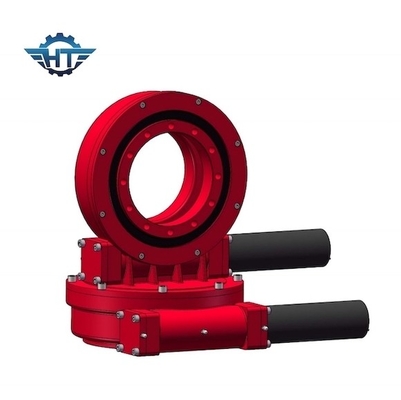

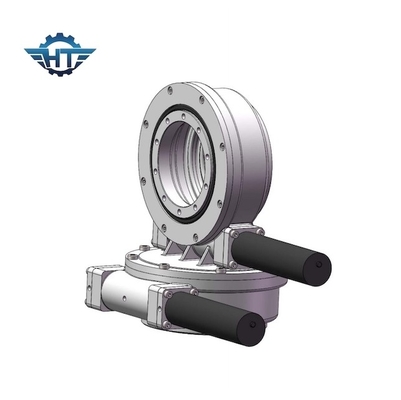

Enclosed Gear Motor Dual Axis Worm Slew Gear For High Precision Solar Tracking System
Dual Axis Worm Slew Gear Description
The dual axis solar tracker solar panels tracking system uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller, and high presision slewing drives, making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
Dual axis solar tracker solar panels tracking system than the solar mounting system to increase power generation 35 ~ 40%.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Parameters of SDE17
|
Usage |
Used for dual solar tracking system |
|
No. of axis |
Dual axis |
|
Size |
17 inch |
|
Certification |
CE/ISO |
|
Delivery date |
Within 15 days |
|
Output torque |
9460 N.m |
|
Tilting torque |
67000 N.m |
|
Back holding torque |
53040 N.m |
|
Gear Ratio |
102:1 |
|
Service life |
30 years |
|
Protection level |
IP65 |
| Self-locking | Yes |
| Efficiency | 40% |
| Weight | 320 kg |
