Product Details:
|
| Material: | QT | Model: | Dual Axis |
|---|---|---|---|
| Feature: | Quick Installation | Life Span: | 30 Years |
| Inspect Report: | Yes | Work Time: | 24 Hours |
| Voltage: | 24V | Warranty: | 5 Years |
| Highlight: | Enclosed Dual Axis Solar Slew Drive,automatic axis Solar Slew Drive,PV Mounting Tracking Solar Slew Drive |
||

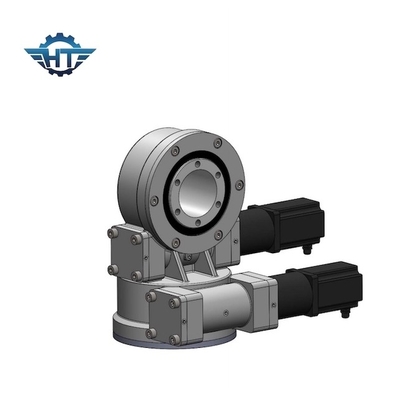

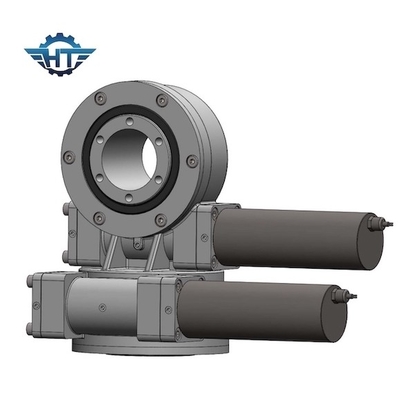

Enclosed Dual Axis Worm Gear Slewing Drive For PV Mounting Solar Tracking System
Worm Gear Slewing Drive Description
Our dual axis slewings are applied in dual axis solar tracking system. The dual axis solar trackers have two automatic axis to track the sun in east-west direction and south-north direction automatically from sunrise to sunset every day. Our slewing drives are designed for long life, working in hard environment conditions. Various sizes available, including customized. Easy to installation and product warranty.
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Export Worldwide
Our clients distribute widely, like in Germany, Norway, Poland, Finland, Spain, UK, France, Russia,USA, Canada, Brazil, Mexico, Australia, Japan, Thailand, Indonesia, Uruguay and many other countries.
We provide the following services to our clients:
1. Finding the right products well suited your requests ( not only cheaper).
2. Providing Report with the real information.
3. Making sure the process of production is according to industrial standard.
4. Providing OEM
5. 24 hours service online
