Product Details:
|
| Model: | 9 Inch | Gear Ratio: | 61:1 |
|---|---|---|---|
| Efficiency: | 40% | Driver: | Electric Motor/hydraulic Motor/servo Motor |
| Type: | Vertical Mounted | Application: | Single Axis Solar Tracking System |
| Precison: | High | OEM Service: | Available |
| Highlight: | worm gear slew drive,slewing ring gear |
||

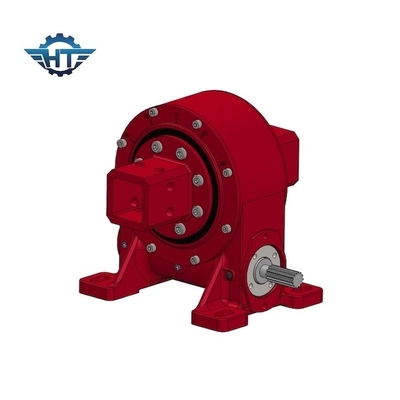

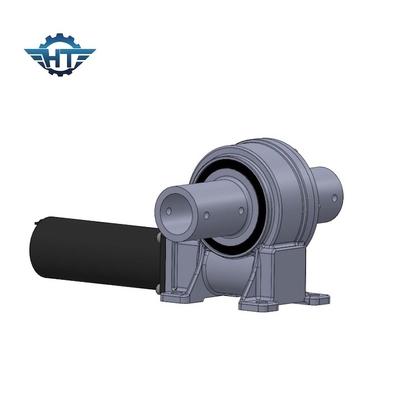

VE9 Slew Drive Gearbox For Oblique Or Tilted Horizontal Single Axis Solar Tracking System
Slew Drive Gearbox Description
Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.
| Model: | VE9 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 4300 N.m |
| Tilting Moment Torque | 16 K N.m | Holding Torque | 27 K N.m |
| Static Axial Rating | 60 KN | Static Radial Rating | 130 KN |
| Dynamic Axial Rating | 30 KN | Dynamic Radial Rating | 65 KN |
| Gear Ratio | 37:1 | Efficiency | 40% |
Technical Table of VE Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Applications
solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
Q&A
1. How to choose?
Please specify the diameter size, width, voltage, power and no-load speed of the required motors, the square meters of the solar panels/mirrors, the arrangement of those solar panels/mirrors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight.
We will give you the best shipping cost after you choose the suitable slewing drives.
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
1 set
6. What's your delivery time?
For standard samples: 0~15 days; for batch orders: within 25~40 days.
