Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | SE3" |
|---|---|---|---|
| Gear Ratio: | 31:1 | Efficiency: | 40% |
| Color: | RAL 9006 Or As Requested | Application: | Single Axis Solar Trackers |
| Place Of Origin: | Changzhou, China | Encoder: | Yes |
| Highlight: | Solar Trackers Worm Gear Slew Drive,Planetary Gear Motor Worm Slew Drive,42CrMo Worm Gear Slew Drive |
||

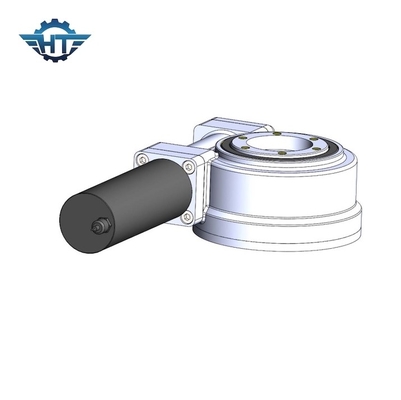

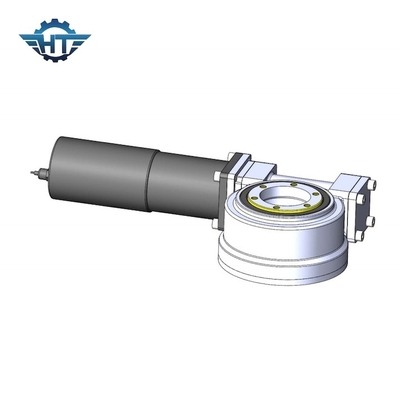

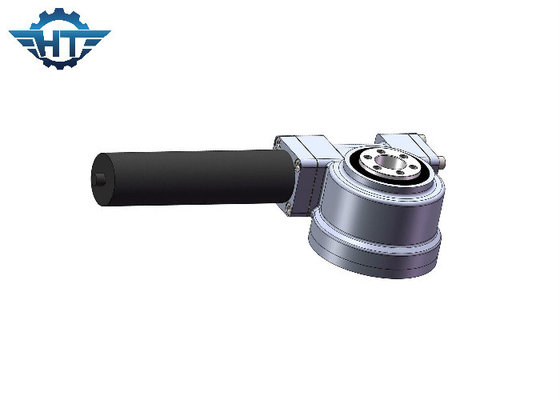

SE1 Small Worm Gear Slew Drive With Planetary Gear Motor For Single Axis Solar Trackers
Small Worm Gear Slew Drive Description
For slewing drive, there are 11 different sizes available from 1" to 25" with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields. Hangtuo has implement strict quality control system, meanwhile, we have passed ISO9001-2008 quality system certification.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Motor Selection
Optional Items: Brushed DC motors (12V/24V/48V) with or without hall sensors, brushless DC gear motors, AC Motor(220V/380V), Encoder.
Installation
SE1 slewing drives could be installed both vertically and horizontally.
It is advised to mount the slewing drives horizontally upside in solar or mechinery applications for better protection. If needed, it could be also mounted vertically, but need addtional supporters.
