Product Details:
|
| Model: | SE14 | Gear Ratio: | 85:1 |
|---|---|---|---|
| Efficiency: | 40% | Color: | RAL 9006 Or As Requested |
| Application: | Single Axis And Dual Axis Solar Trackers | Driver: | Motor |
| Warranty: | 5~10 Years | Feature: | Long Life |
| Highlight: | High Accuracy Solar Trackers Slew Drive,SE14 Solar Trackers Slew Drive,680 kN Solar Slew Drive |
||

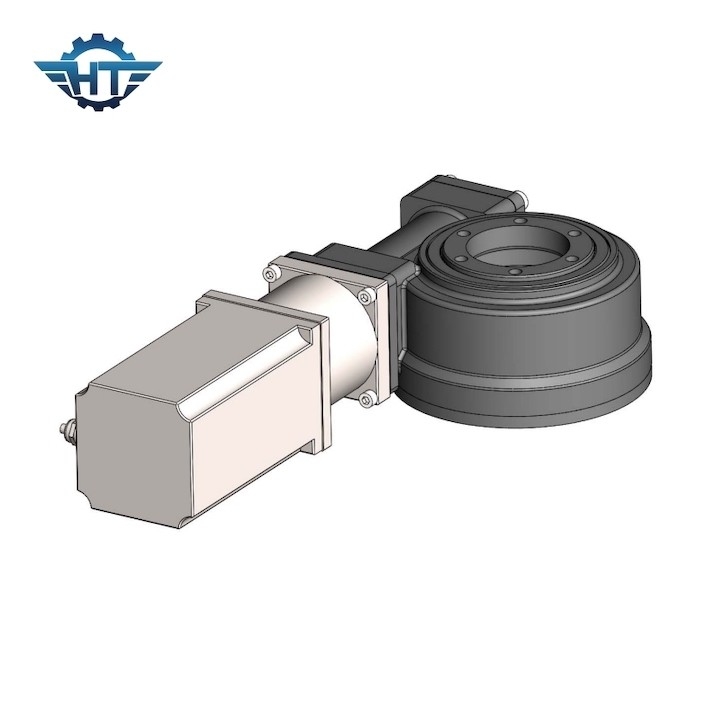

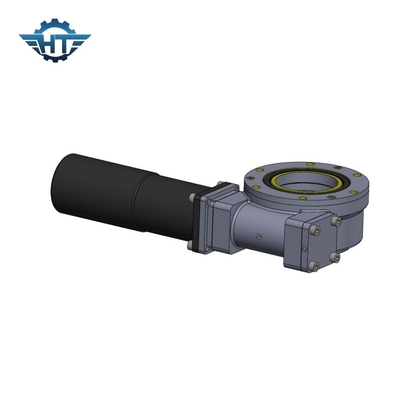

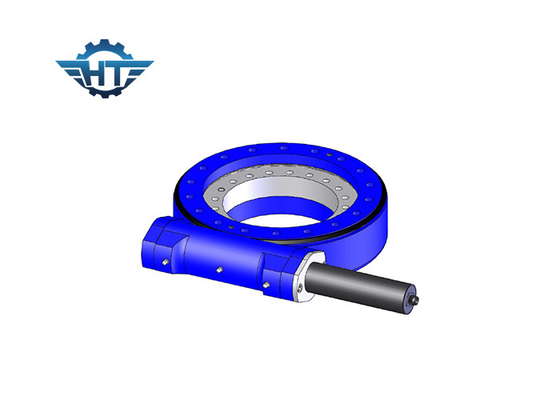

SE14 Gear Ratio 85 / 1 High Accuracy Slew Drive For Single Axis And Dual Axis Solar Trackers
High Accuracy Slew Drive Description
Slewing worm drive is consisting of worm gear, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the worm and envelop worm and gear are engaged to increase the torque, stable and reliable. Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotate at azimuth and elevation driven by slewing drive.
Performance Table of SE14
|
Model |
horizontal 14 inch worm drive |
|
Ratio |
85:1 |
|
IP Grade |
IP66 |
|
Rated Output Torque |
44 kNm |
|
Tilting Torque |
135 kNm |
|
Axial Load |
680 kN |
|
Radial Load |
230 kN |
|
Holding Torque |
68 kNm |
|
Efficiency |
40% |
|
Precision |
≤0.1 ° |
|
Self-locking |
Yes |
|
Weight |
62 kg |
|
Working Temperature |
-30～+120 ℃ |
VE Model Performance Parameters
|
VE Model Performance Parameters |
||||||||||||
|
Model |
Rated Output Torque (N.m) |
Holding Torque (kN.m) |
Tilting Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio |
Efficiency |
Precision (Degree) |
IP |
Working Tep(℃) |
Self-locking |
Weight (kg) |
|
3" |
806 |
9 |
5 |
22 |
15 |
31:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
12kg |
|
5" |
962 |
30 |
6 |
16 |
27 |
37:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
18kg |
|
7" |
7344 |
60 |
10 |
34 |
58 |
51:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
32kg |
|
8" |
8000 |
70 |
14 |
50 |
80 |
50:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
28kg |
|
9" |
8784 |
80 |
16 |
60 |
130 |
61:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
52kg |
|
12" |
11232 |
100 |
25 |
77 |
190 |
78:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
65kg |
|
14" |
12240 |
120 |
48 |
110 |
230 |
85:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
88 kg |
|
17" |
14688 |
136 |
67 |
142 |
390 |
102:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
135 kg |
|
21" |
18000 |
140 |
89 |
337 |
640 |
125:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
192 kg |
|
25" |
21600 |
150 |
112 |
476 |
950 |
150:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
251 kg |
Application
Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
There are more than 10 different sizes, starting from 3' size to 25" inch size, among them are 5", 7", 9" 12", 14", 17", 19" and 21". They are both widely used in solar tracking systems (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.
