Product Details:
|
| Material: | QT | Model: | SDE5 |
|---|---|---|---|
| Gear Ratio: | 37:1 | Rated Output Torque: | 800 Nm |
| Holding Torque: | 6000 Nm | Tilting Torque: | 9200 Nm |
| Efficiency: | 40% | Standard Color: | RAL 9006 |
| Highlight: | worm gear slew drive,slewing ring gear |
||

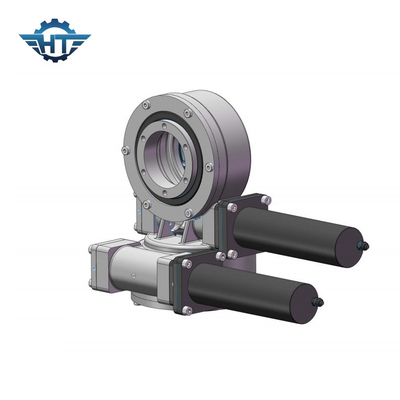

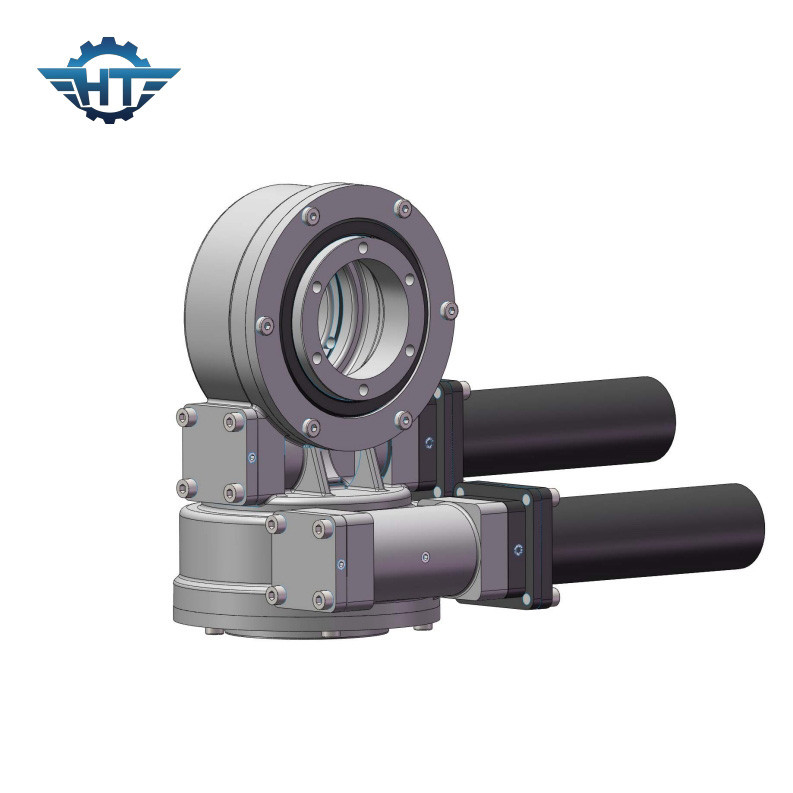

SDE5 Self Lock Dual Axis Slew Drive Gearbox With Electric Drived Solar Trackers
Dual Axis Slew Drive Gearbox Description
The performance of slewing drives ranges from 6kNm to 220kNm of holding torque, 200Nm to 63kNm of output torque, 500Nm to 271kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1. The mounting can be done horizontally, vertically, or across a combination of multiple axes. VE series slewing drives are advised to mount the slewing drives referring to attached drawing upside in solar applications for better protection. SE series slewing drives is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis. SDE series slewing drives are mounted of two directions.
SDE Model Slewing Drive Performance Parameters
|
SDE Model Performance Parameters |
||||||||||||
|
Model |
Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio |
Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking |
Weight (kg) |
|
3" |
600 |
1.5 |
5.8 |
10 |
15 |
31:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
25kg |
|
5" |
800 |
6 |
9.2 |
16 |
27 |
37:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
34kg |
|
7" |
2000 |
7.5 |
13.2 |
34 |
58 |
57:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
56kg |
|
9" |
4300 |
16 |
27.2 |
60 |
130 |
61:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
92kg |
|
12" |
5800 |
25 |
41 |
77 |
190 |
78:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
160kg |
|
14" |
6750 |
48 |
45 |
110 |
230 |
85:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
224kg |
|
17" |
9460 |
67 |
54 |
142 |
390 |
102:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
320kg |
|
21" |
16000 |
89 |
65 |
337 |
640 |
125:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
492kg |
|
25" |
21450 |
112 |
89 |
476 |
950 |
150:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
705kg |
Advantages
1. Strong overturning moment based on slewing ring
2. Adopt enveloping worm drive
3. Drive larger load for using multi tooth contact
4. Better static self-locking function
