Product Details:
|
| Model: | 7 Inches | Gear Ratio: | 57:1 |
|---|---|---|---|
| Application: | Sun Tracking System | Driver: | 220VAC/380VAC/24VDC Motor |
| Warranty: | 5~10 Years | Certificate: | ISO9001, CE |
| Installation: | Vertical | Worm: | Envelope Worm |
| Highlight: | worm drive gearbox,worm gear slewing ring |
||

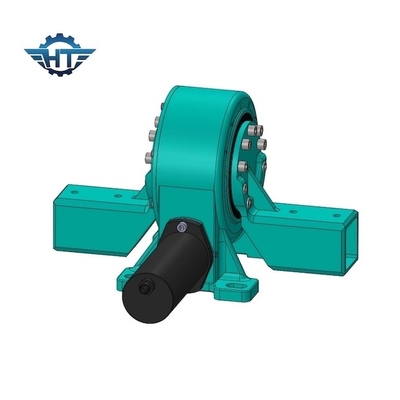

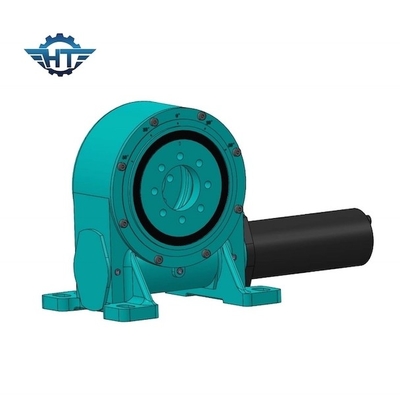

High Torque Single Axis Slewing Drive With Electric Motor For Sun Tracking System
Single Axis Slewing Drive Description
SE enclosed slewing drives are now the most popular type in the market which can help power movement in machinery such as wind turbines, military equipment, digger s and also in clean energy such as solar trackers, concertrated solar power stations, In addtion, could be also apply in other areas such as medical equipment, forestry, waste management and industrial positioners. The housing fully encapsulates all the drive components such as the double enveloping worm gearset, planetary gearing, and turntable bearing so that they have total protection from the elements. The enclosed drive is also advantageous if you’re mounting inside so as not to see the parts in motionto avoid injuring to site workers.
SE slewing drives are ideal for jobs that require both load-holding and rotational torque from the same gearbox. The fully-enclosed comes with Hangtuo's patented hourglass worm technology, or cone drives and double enveloping worm gearsets where required, for maximum load-holding and efficiency. Each size is rigorously tested for reliable performance The types range from 1 inch to 25 inches which producing 1.8kNm to 89kNm of holding torque, 0.3Nm to 21kNm of output torque, 1 kNm to 346 kNm of overturning moment load capacity, and gearbox reduction ratios of 31:1 up to 150:1.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Installation
Vertical installation
It is advised to mount the slewing drives referring to the drawing upside in solar applications for better protection.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.
Horizontal installation
It is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.
