Product Details:
|
| Model: | 5 Inches | Gear Ratio: | 37:1 |
|---|---|---|---|
| Application: | Oblique Solar Tracking System | Place Of Origin: | Changzhou, China |
| Driver: | Electric Motors | Certificate: | ISO9001, CE |
| Installation: | Vertical | Maintenance: | Free |
| Color: | As Requested | Backlash: | ＜0.1° |
| Highlight: | worm drive gearbox,worm gear motor |
||

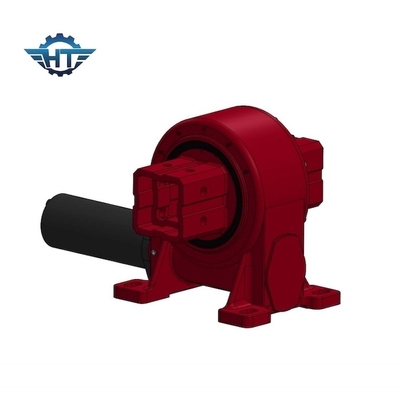

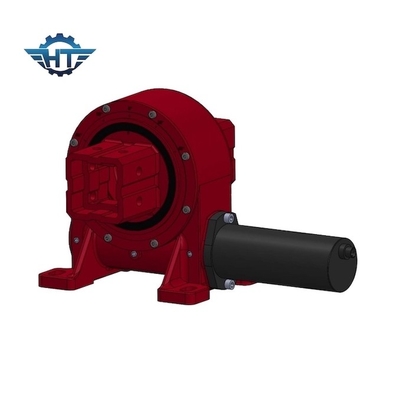

Horizontal Mounted Small Worm Drive Gearbox For Tilted And Oblique Solar Tracking System
Small Worm Drive Gearbox Description
What is a Slewing Drive?
A slewing drive (or slew drive for short) is a complete, ready to install system that consists of a ball or roller slewing ring (bearing), worm, and completely enclosed housing. It can be customized with hydraulic or electric planetary gearboxes with selectable IP grade based on different applications and customers’ demand.
It has the features of corrosion protection, high load, and high precision.
Worm gear slewing is widely applied in the relatively rotary parts of machinery and solar energy field such as solar tracking system, rotary chassis of aerial working machinery, truck crane, rock drill, drilling machine, grasping wood machine, code molding machine.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Key Features
1. An unlimited rotating angle and range
2. Provide the most efficient transmission of high power and torque possible
3. Completely enclosed and sealed housing withstands harsh environments and increases safety
