Product Details:
|
| Material: | Cast Iron | Model: | 7 Inches |
|---|---|---|---|
| Gear Ratio: | 57:1 | Rated Output Torque: | 1750 Nm |
| Holding Torque: | 13200 Nm | Tilting Torque: | 7000 Nm |
| Efficiency: | 40% | Transportation Way: | By Sea, Air Or Express |
| Highlight: | Uniaxial Electric Slew Drive,Electric Slew Drive 7000Nm,Uniaxial electric worm drive |
||

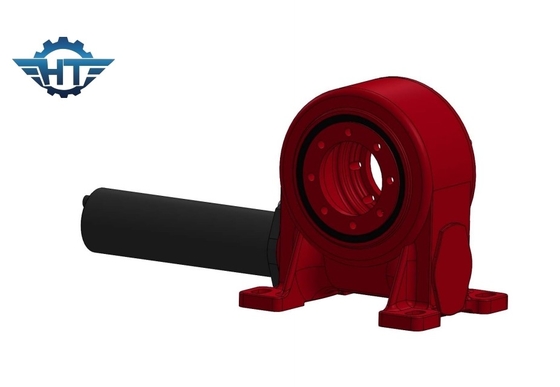

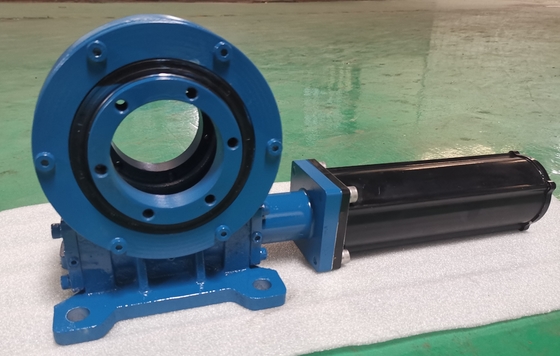

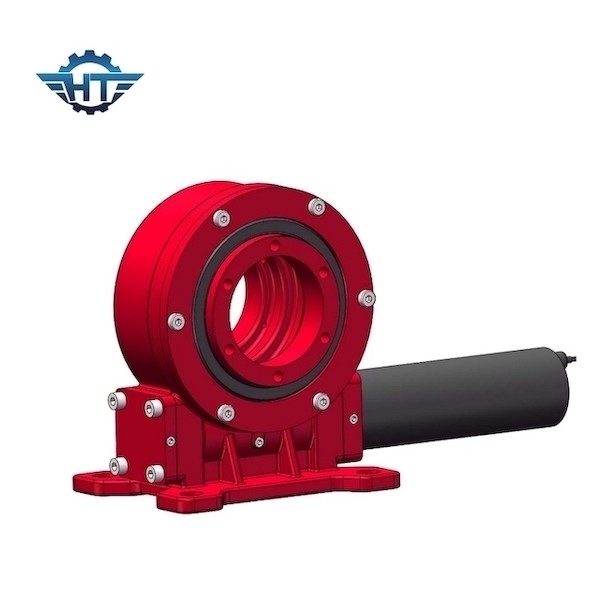

VE5 Single Axis Slew Drive With Enveloping Worm Gear For Solar Tracking System
Electric Slewing Drive Description
Our manufacturing standard of electric slewing drives are according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.
We devote ourselves to the R&D of customized slewing bearing with high precision,special purpose and requirements. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.
Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Flat uniaxial photovoltaic tracking system
The mainstream tracking structure of photovoltaic power generation is flat uniaxial. Flat single series can be divided into flat single small row, flat single large row, flat single parallel row and so on. Hangtuo's professional team customizes reducers with different structures, different efficiencies, and different torques according to customers' usage scenarios and load requirements, and customized solutions to meet the needs of various customers.

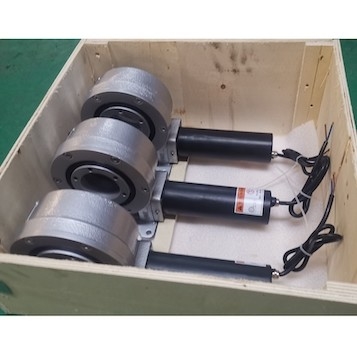

Packaging & Shipping
1. Filling with rust-proof oil
2. Packing with protective layers
3. Fixed in the plywood case, pallet, steel frame
