Product Details:
|
| Model: | VE9 | Gear Ratio: | 61:1 |
|---|---|---|---|
| Application: | Solar Energy | Place Of Origin: | Changzhou, China |
| Driver: | 24 VDC Planetary Gear Motor | Certificate: | ISO9001, CE |
| Installation: | Vertical | Maintenance: | Free |
| Color: | Requested | Backlash: | Less Than 0.1 Degree |
| Highlight: | worm drive gearbox,worm gear motor |
||

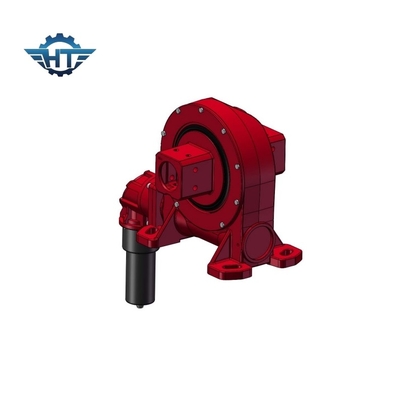

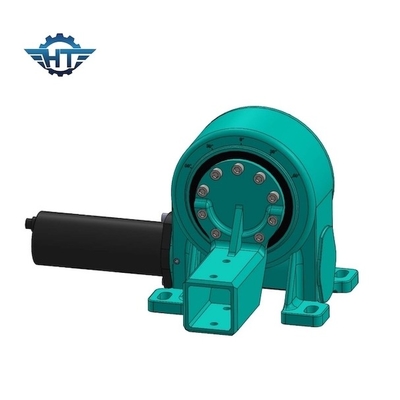

Enclosed House Slewing Ring VE9 Slew Drive Gearbox For Single Axis Solar Tracking System
VE9 Slew Drive Gearbox Description
1. Use skeleton oil seal to avoid oil leakage efficiently
2. The mounting dimension designed could match many applications.
3. Easy maintenance
4. Adopt worm gear structure which has strong adhesion and driving torque
5. Hard stop inside incase of mulfunctioning of the software control system
Parameters of VE Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Features
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Grease had been filled before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High backholding torque, suitable for vertical installation
Applications
Worm drives have proven effective in many machines and equipment, in various applications and various operational conditions, such as: construction and assembly platforms, placement of cockpits in forest machinery, material handling equipment, positioning of solar systems, control of superstructures and operational applications of construction machinery, industrial cranes and so on.
