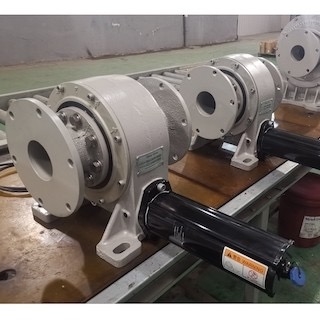

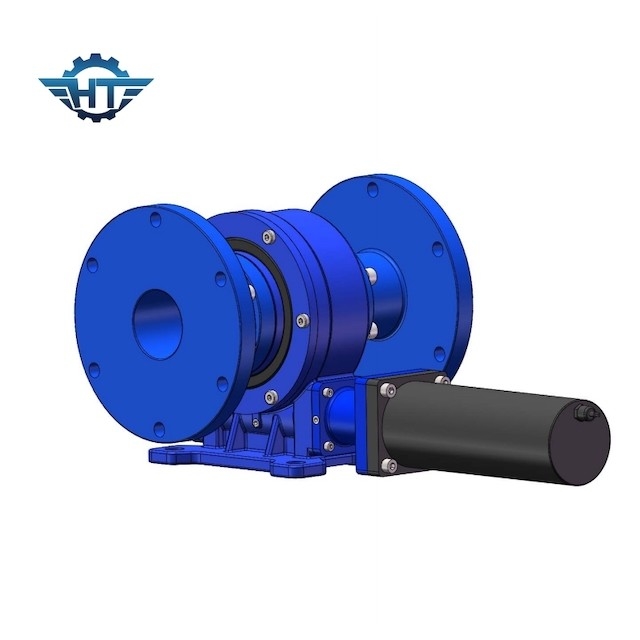

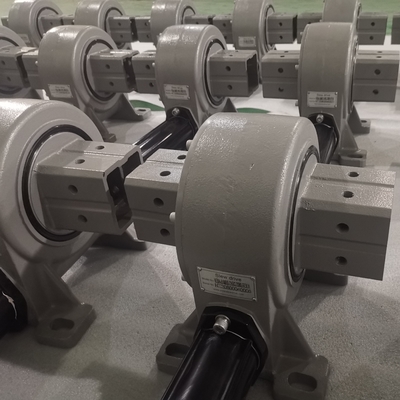

5 Inches Single Axis Slewing Drive For Solar Tracker 50Mn Long Lifetime

5 Inches Single Axis Slewing Drive For Solar Tracker 50Mn Long Lifetime
5 Inches Single Axis Slewing Drive For Solar Tracker 50Mn Long Lifetime 5 Inches Single Axis Slewing Drive For Solar Tracker 50Mn Long Lifetime 5 Inches Single Axis Slewing Drive For Solar Tracker 50Mn Long Lifetime

Large Image :  5 Inches Single Axis Slewing Drive For Solar Tracker 50Mn Long Lifetime

Product Details:
Place of Origin: CHINA
Brand Name: HT
Certification: CE, ISO9001
Model Number: VE5"
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR

5 Inches Single Axis Slewing Drive For Solar Tracker 50Mn Long Lifetime

Description
Type: Worm Gear Drive Materials: 42CrMo, 50Mn
Application: Solar Tracking System Warranty: 10 Years
Color: As Request HS Code: 8483409090
Motor: 24V DC Feature: Long Lifetime
Highlight:

5In Single Axis Slewing Drive

,

Slewing Drive For Solar Tracker 50Mn

,

50Mn hydraulic worm drive

VE5 Single Axis Slew Drive With Enveloping Worm Gear For Solar Tracking System



Envelope Worm Slew Drive Description



Enveloping worm slew drives are designed in solar photovoltaic panel rotation and improves power generation efficiency. They can be applied in PV tracker-single axis & dual axis solar tracking solutions, solar concentrator, solar dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough etc.



VE Model Performance Parameters



VE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (kN.m) Tilting Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(Degree)

IP Working Tep(℃) Self-locking Weight(kg)
3" 806 9 5 22 15 31:1 40% ≤0.15 66 -40~+80 Yes 12kg
5" 962 30 6 16 27 37:1 40% ≤0.15 66 -40~+80 Yes 18kg
7" 7344 60 10 34 58 51:1 40% ≤0.15 66 -40~+80 Yes 32kg
8" 8000 70 14 50 80 50:1 40% ≤0.15 66 -40~+80 Yes 28kg
9" 8784 80 16 60 130 61:1 40% ≤0.15 66 -40~+80 Yes 52kg
12" 11232 100 25 77 190 78:1 40% ≤0.15 66 -40~+80 Yes 65kg
14" 12240 120 48 110 230 85:1 40% ≤0.15 66 -40~+80 Yes 88 kg
17" 14688 136 67 142 390 102:1 40% ≤0.15 66 -40~+80 Yes 135 kg
21" 18000 140 89 337 640 125:1 40% ≤0.15 66 -40~+80 Yes 192 kg
25" 21600 150 112 476 950 150:1 40% ≤0.15 66 -40~+80 Yes 251 kg



Features



1. Rotation 360 degrees

2. Connection of a driving motor from the left or right side

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Grease had been filled before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping

8. High backholding torque, suitable for vertical installation



Applications



There are many applications where a rotary drive can be used, primary because it is well suited for applications that require load to maintain power and rotational torque.
Typical swing drive applications include, but are not limited to:
1.Solar tracker
2.Wind Turbines
3.Men's lift
4.Hydraulic machinery
5.Telehandler
6.Excavator
7.Lift
8.Cranes
9.Drilling equipment
10.Military equipment
