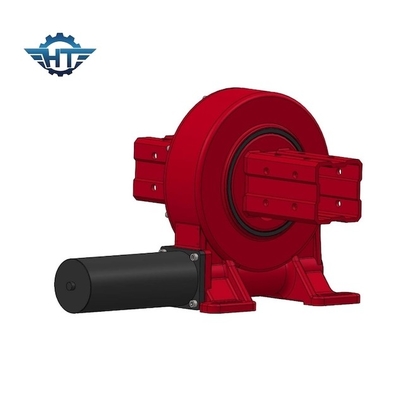

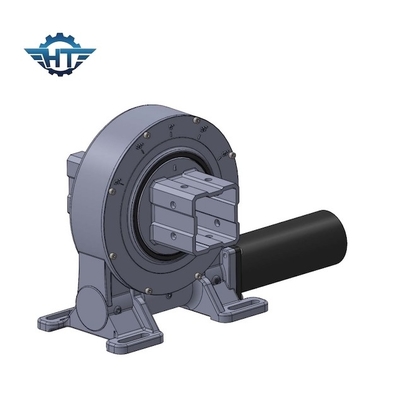

Envelope Worm Slew Drive Gearbox With 12VDC Planetary Gear Motor For Solar Tracking System
Slew Drive Gearbox Description
The trough type solar thermal power generation system is called a trough parabolic mirror solar thermal power generation system. The trough type parabolic concentrating collectors are arranged in series and parallel, heating the working medium, generating high temperature steam, and driving the steam turbine generator set to generate electricity.
Trough solar thermal power generation uses solar trough parabolic mirrors for solar thermal power generation. It is a multi-channel parabolic concentrating collector, arranged in series and parallel, so that it can collect higher temperature heat, heat the working fluid to generate steam, and drive the steam turbine generator to generate electricity. The trough solar thermal power generation is mainly composed of four parts: Mirror field, heat exchange system, heat storage device and steam turbine power generation device.
The slew drives are needed in making the mirror tracking towards the sun all the time to collect the heat.
Vertical Slew Drive Performance Parameters
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Features
1. Rotate from 0~180°
2. Connect a driving motor on the left or right side
3. Grease filled before factory
4. Simple installation
5. Low maintenance
6. The gear is self-locking; therefore a brake is not necessary
7. High backholding torque, suitable for vertical installation
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
