Product Details:
|
| Material: | 50Mn, 42CrMo | Warranty: | 10 Years |
|---|---|---|---|
| Application: | Single Axis Tilted Solar Trackers | Rotate Axis: | Single Axis |
| Service: | OEM Design | Packaging: | Plywood |
| Motor: | Electric Motor | Installation Site: | Roof And Field |
| Highlight: | worm gear slew drive,slewing ring gear |
||

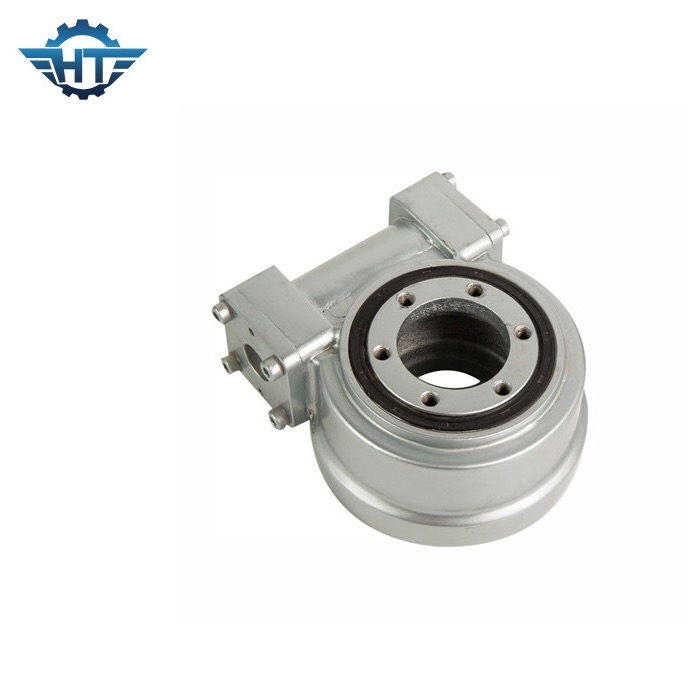

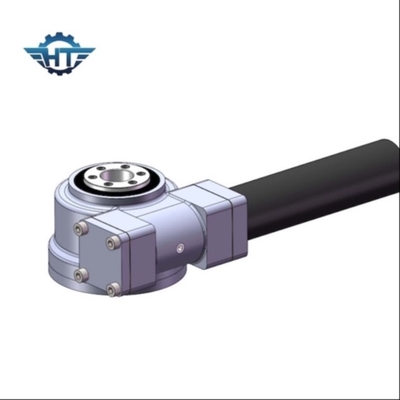

Horizontal Slew Drive Gearbox For Single Axis Tilted Solar Trackers
Slew Drive Gearbox Description
SE slew drive is a good choice when project is in wild harsh working conditions and anti-corrosion. It is designed with curved tooth gear, it will increase the output torque with the smooth running of a superior anti-sandstorm, field use. Hangtuo slewing drive mainly consists of a slewing bearing, a worm gear, housing and a hydraulic or an electric motor. Corporate with Hangtuo means direct contact with experienced technical specialists, good advice and satisfied agreements. Modifications to suit customers’ demands can be executed swiftly and reliably. No matter you want a different adapter to suit for the gear motor connection, long shaft, and alternative painting process or colors. Good documentations like 3D drawings, professional development and testing of a prototype.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
Slewing drives can be widely used for solar tracking system, CPV, CSP, HCPV, wind turbine and satellite antenna dish. Those products are designed for long life, working in hard environmental conditions.
Our Advantages
Quick Reaction Times
Long-term experience in intelligent-process control for mass production as well as in customer-oriented product development.
Product Advantage
Slewing Drive (Enclosed Type, Vertical Type, Dual Axis Type, Precision Type) Hourglass worm slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.
Stable Quality
Set up Critical Quality Inspection Points, Total 9 positions through the plant. We set up critical quality inspection points , make quality inspection instructions to control strictly in key process. We use high precision & measurement gauge calibration.
Testing
Advanced measurement device
Measurement should be calibrated, check and only qualified gauge can be used.
