Product Details:
|
| Model: | 5 Inches | Gear Ratio: | 51:1 |
|---|---|---|---|
| Application: | Solar Trackers | Place Of Origin: | Changzhou, China |
| Driver: | Planetary Gearbox | Installation: | Vertical |
| Color: | As Requested | Backlash: | 0.1 Degree |
| Highlight: | worm gear slewing ring,worm gear motor |
||

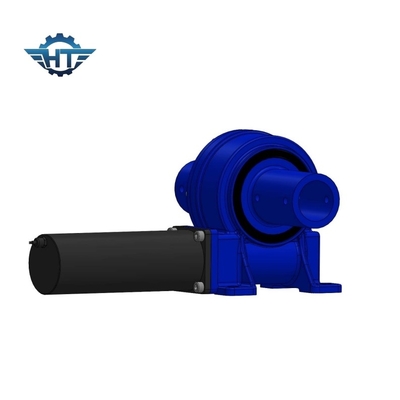

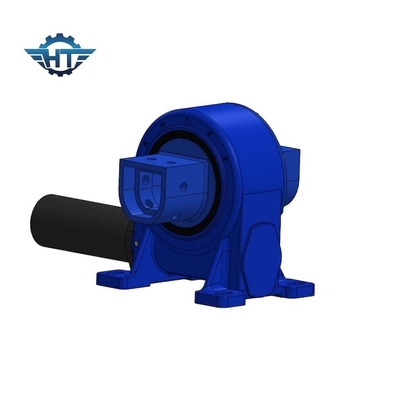

VE5 Model Horizontally Mounted Worm Gear Slew Drive With 24V DC Brushed Gear Motors For Solar Trackers
VE5 Slew Drive Description
Due to the high gear ratio and the large surface contact between worm and worm gear, very high torque values can be transmitted by very small sized slew drives which means highest power density. Worm gear driven slew drives could be used in applications which demand of low speed and high torque such as solar trackers, concentrated heat power stations. When it is used in continuous rotation applications with high rotation speed is not permissible due to higher duty which will cause overheating inside the drives and failure to function.
VE Model Performance Parameters
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight (kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Additional Information
| Min. Order Quantity | 5 units, sample order available |
| Port | China seaport ningbo/shanghai |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | Lead time 20-40 days |
| Packaging Details | Wooden case free from fumigation |
