Product Details:
|
| Model: | 7 Inches | Gear Ratio: | 57:1 |
|---|---|---|---|
| Application: | Parabolic Thermal | Place Of Origin: | Changzhou, China |
| Driver: | Stepper Motor | Installation: | Vertical |
| Color: | As Requested | Backlash: | Less Than 0.03 Degree |
| Highlight: | worm drive gearbox,worm gear motor |
||

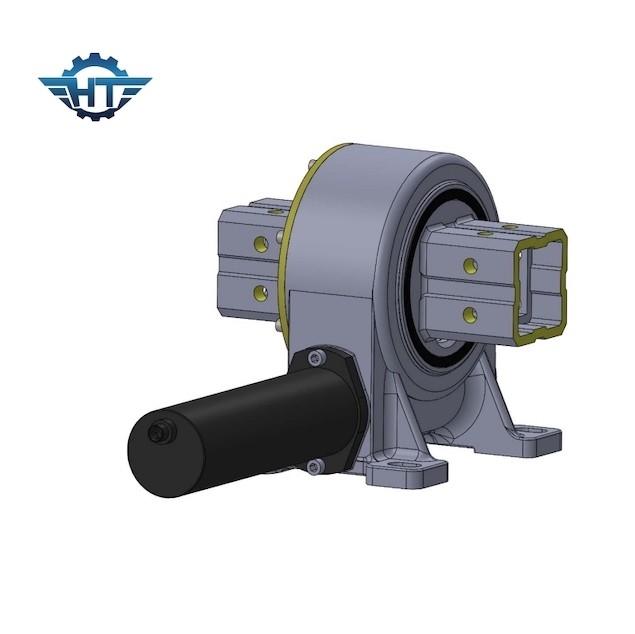

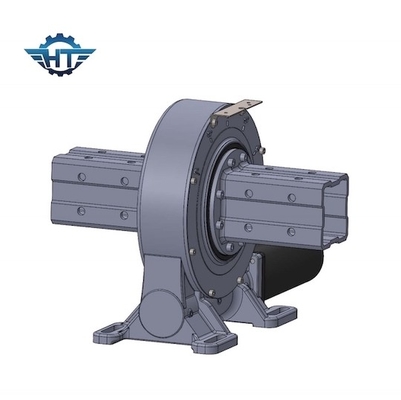

Vertical Mounted Enclosed House High Precision Gearbox For Fresnel And Parabolic
Vertical Mounted Slewing Drive
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side,
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High accuracy
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Application
The gear and worm are contact in a condition of near perfect mesh. This will in turn allows for a highly efficient transfer of driving force, uniform load distribution and a very impressive level of positioning accuracy in drive. The more common applications are solar energy, wind energy and various long-term automatic tracking machinery. Due to the compact structure and short transmission chain, the rotary drive is easier to achieve higher precision and easier to carry out digital control, so it is also widely used in the field of industrial robots.
