Product Details:
|
| Material: | QT | Model: | SDE3" |
|---|---|---|---|
| Gear Ratio: | 31:1 | Rated Output Torque: | 600 Nm |
| Holding Torque: | 1500 Nm | Tilting Torque: | 5800 Nm |
| Efficiency: | 40% | Rotating Type: | Horizontally And Vertically |
| Highlight: | 3 Inch Slew Drive Gearbox,Dual Axis Slew Drive Gearbox,Solar Tracking System Slew Gearbox |
||

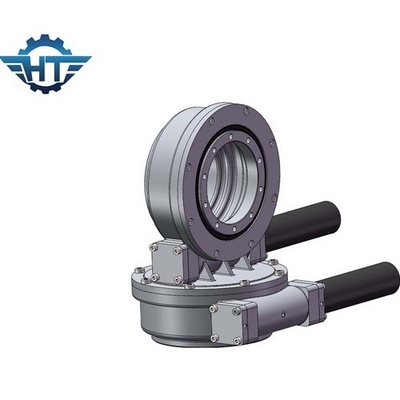

3 Inch Dual Axis Slew Drive Gearbox Of High Accuracy For 24V Solar Tracking System
Dual Axis Slew Drive Gearbox Description
1. our slewing drive are widely used in the solar tracking systems, special construction vehicles, port machinery and small wind turbines
2. we are fully equipment with all advanced machines fora manufacturing, assembly, inspection, test processes and automatic cleaning and painting and power coating lines.
Slewing drive is the combination of the slewing ring with the hourglass worm shft, wich provides more tooth contact , increased drive torque and smoother rotation.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
Application
A slewing drive is also called slewing gear drive or slewing reducer, etc. It is typically used in aerospace area, solar power systems, wind turbines, satellite broadcasting system, and engineering machinery like truck cranes, and man lifts, etc. Recently years, it has been prosperously used in photovoltaic power systems.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. In normal, 3 inch slewing drive is suitable for solar power system coming with 3- 5 ㎡ solar panel, 7 inch for 10-17 ㎡ solar panel, 9 inch for 18-30 ㎡, 12 inch for 31-45 ㎡, and 14 inch for 46-60 ㎡. These are provided for your reference. For more specific and detailed information, please contact me directly.
A slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic motor to function as power driving system.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory specializing in the production of screw jack, bevel gearbox, linear actuaor, solar slewing.
Q: How long is your delivery time?
A: Usually we produce within 7-60 days after the payment confirmed. If you are urgent, we will urge the production department for you.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What about the payment methods?
A: We accept T/T, L/C for big amount, and for small amount, you can pay us by PayPal, Western Union, and etc.
