Product Details:
|
| Type: | Vertical Slewing Drive | Material: | 42CRMN Or 50Mn |
|---|---|---|---|
| Application: | Solar Heating System | Warranty: | 10 Years |
| Color: | Customer Required | Size: | 3 Inch - 25 Inch |
| Motor: | 24V DC Motor | Feature: | Long Life |
| Highlight: | Electric Motor Worm Gear Slew Drive,Compact VE5 Worm Gear Slew Drive,Solar Heating System Slew Drive |
||

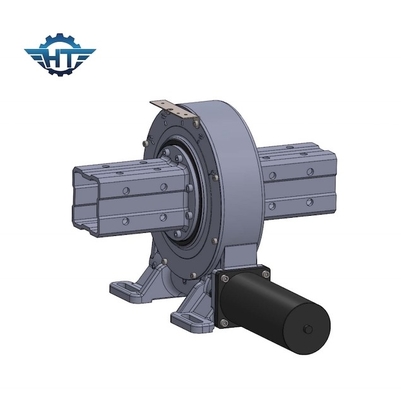

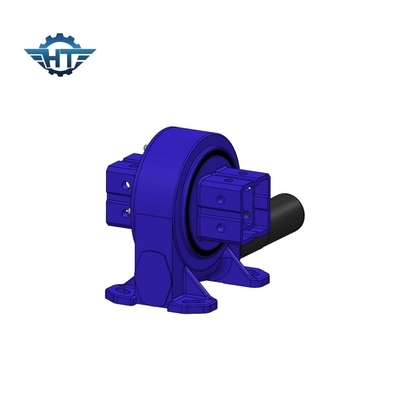

Compact VE5 Worm Gear Slew Drive With Electric Motor For Solar Heating System
Worm Gear Slew Drive Description
The trough solar thermal power generation technology concentrates the sunlight on the focal line through a trough parabolic concentrating mirror, and collector is installed on the focal line. To absorb the solar radiant energy after focusing. After the fluid in the tube is heated, it flows through the heat exchanger to heat the water to generate steam, which is generated by means of a steam power cycle. The trough solar thermal power generation system mainly includes a heat collecting system, a heat storage system, a heat exchange system, and a power generation system. The heat collecting system is mainly composed of a heat collecting tube, a collecting mirror surface, a supporting structure and a control system. The slew drives are the key part in the supporting structure.
Parameters of VE Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Features
1. Rotate from 0~180°
2. Connect a driving motor on the left or right side
3. Grease had been filled before factory
4. Simple installation
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High backholding torque, suitable for vertical installation
9. Low maintenance
