Product Details:
|
| Type: | Slewing Drive | Material: | QT |
|---|---|---|---|
| Application: | Single Axis Solar Tracking System | Warranty: | 10 Years |
| Color: | Customer Required | Size: | 3 Inch - 25 Inch |
| Motor: | 24VDC/220VAC | Feature: | 30 Field Life |
| Highlight: | Self Lock Planetary Slew Drive Gearbox,25 Inch Solar Slew Drive Gearbox,24VDC Solar Slew Drive Gearbox |
||

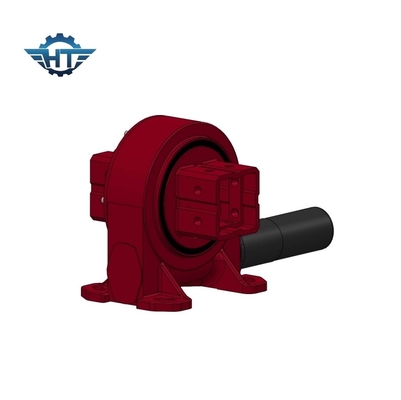

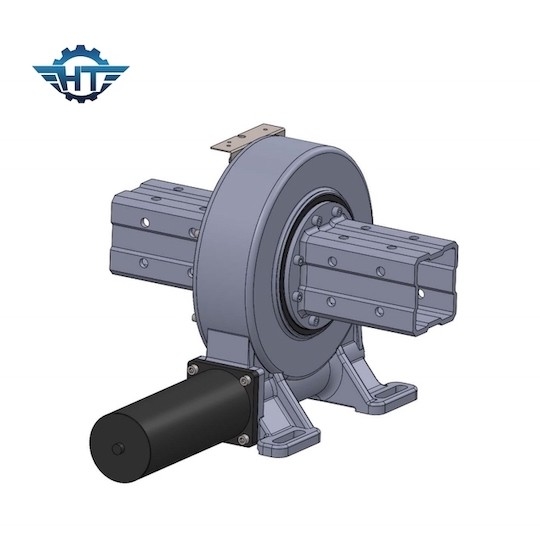

VE9 Self Lock Planetary Slew Drive Gearbox For Single Axis Solar Tracking System
Self Lock Planetary Slew Drive Description
VE, vertical series planetary gear slew drive gearbox's applications mainly for winch crane, slewingdeck crane, crane winch design, excavator swing drive, slewing drive for solar tracking system etc. Our unique planetary gear reduction gearbox working principle makes itself for solar
tracker bear a big radial load due to the proportionate distribution of torque. What's more, our slewing drives has hydraulic motor configurations. We have all series slew gearbox size meet customer different demand.
Parameters of VE Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Features
1. Rotate ±60°, hard stop inside to ensure system safety
2. Connect a driving motor from the left or right side
3. The clearance is already set by the producer before factory, no need to adjust when installation
4. Grease had been filled before factory
4. Simple installation and low maintenance
5. Compact design and space saving
6. The gear is self-locking, no need of brake
7. Easy and fluent method of starting and stopping
8. High tilting torque, suitable for horizontal installation
Application
Slew drives are used around the world. The application areas include the following: As steering transmission in crane traveling gears and heavy-duty transporters, in lift platforms, in grippers, tongs, and other rotary devices in the construction machine sector. Solar tracking systems, wind energy, dishes, satellite antenna etc.
