Product Details:
|
| Brand Name: | Hangtuo | Material: | 50Mn, 42CrMo |
|---|---|---|---|
| OEM: | Available | Certificate: | ISO9001, CE |
| Matched Motor: | Electrical Motor | Package: | Plywood Case |
| Color: | As Requirement | Precision: | ≤0.15° |
| Highlight: | High Torque Worm Gear Slew Drive,17 Inch Worm Gear Slew Drive,Photovoltaic Station Worm Gear Slew Drive |
||

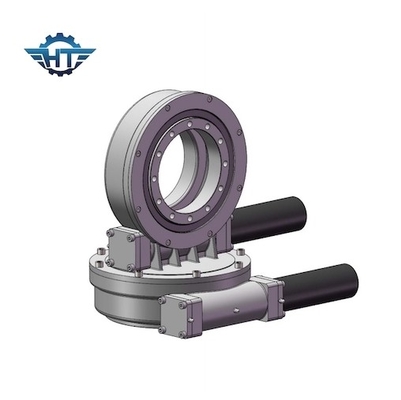

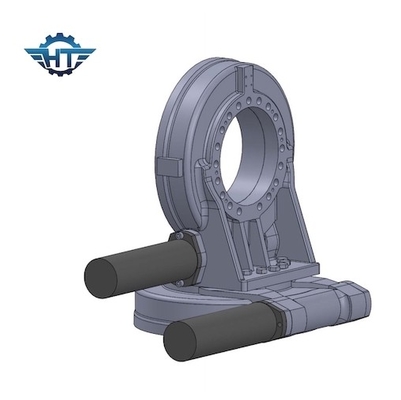

High Torque 17 Inch Dual Axis Worm Gear Slew Drive For Concentrated Photovoltaic Station
Dual Axis Worm Gear Slew Drive Description
Slewing ring bearings may be small, but they help do the largest jobs in the business. From swing arm rotation on cranes to the platform on a wind turbine, slewing rings are an integral part of many machinated processes. Welcome to purchase the high quality and functional dual axis slewing drive worm gear for sun tracking system from Hangtuo, an experienced team in solar tracking industry.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Features
1. test all of our products for quality and reliability
2. create customized solutions with a 30-year field life
3. all our drives meet the standards set by ISO 9001, CE certifications
4. our components and final assemblies are qualified
5. designed to hold heavy loads and withstand high forces without breaking
6. self-lock, no need of break
7. built with hourglass worm which increase gear engagement
Traceability
1. Customer feedback Contract No & Serial No.
2. Container No.
3. Production date
4. Key component lot No.
5. Key material certificate
6. Inspection Report
