Product Details:
|
| Gear Ratio: | 61:1 | Type: | Enclosed |
|---|---|---|---|
| Application: | Construction Machinery | Motor: | Hydraulic Motor, Electric Motor |
| IP Grade: | IP66 | Color: | As Requested |
| Effciency: | 40% | Install: | Horizontal, Vertical |
| Highlight: | SE9 Slewing Bearing Drive,Automotive Lifts Vertical Slewing Drive,SE9 Slewing Drive For Solar Tracking System |
||

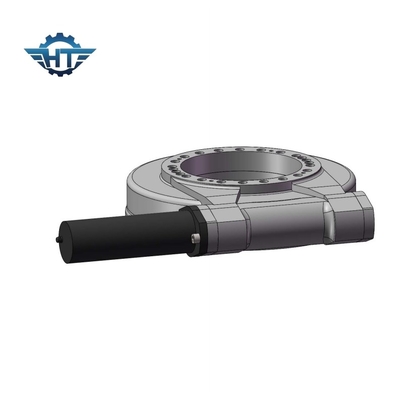

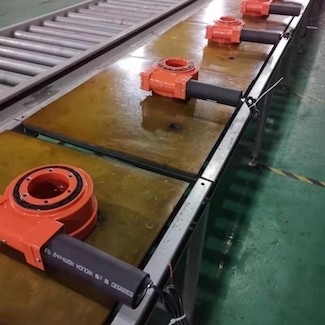

Worm Gear SE9 Slewing Drive For Oil Tool Equipment And Automotive Lifts
Worm Gear SE9 Slewing Drive
Hourglass worm
Our slewing drives are using hourglass worm technology, in which the worm is shaped to engage more teeth in the gear. This increased tooth engagement results in greater strength, efficiency and durability.
Function
Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear, in general, the shaft is driven by electric gear motor.
Gear ratio
The rotation of the horizontal worm turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases.The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
Application of fog cannon
Also known as environmental protection fog cannon car, "haze reduction artifact", etc., the water is finely atomized into water mist particles (50~200 microns) the size of dust particles through high pressure and sprayed from the cannon-shaped air duct, with strong wind and long range. The range is wide, the dust condenses and settles in contact with the water mist particles in the air, and then achieves the purpose of suppressing dust and purifying the air.
Application of mining hydraulic excavation drilling rig
An excavation rock drilling rig is a mobile rock drilling machine equipped with multiple (or one) hydraulic rock drills on the chassis, also known as a rock drilling rig or a drilling rig. The drilling rig can be positioned precisely, and can drill deep and large-diameter blastholes with a rod, and provide good shaft thrust. At the same time, one person can operate multiple rock drills on the trolley, and can even remotely operate it away from the working surface. It is an excavation rock drilling machine with a high degree of mechanization in mine excavation construction, which can improve rock drilling efficiency, save labor, improve labor conditions, and reduce underground operators.
