Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | 9 Inch |
|---|---|---|---|
| Gear Ratio: | 61:1 | Efficiency: | 40% |
| Precise: | ≤ 0.1 | Motor: | Hydraulic Motor |
| Color: | As Requested | Type: | Single Worm Single Axis |
| Highlight: | SE9 Slewing Bearing Drive,Slewing Bearing Drive 42CrMo,42CrMo slew drive gearbox |
||

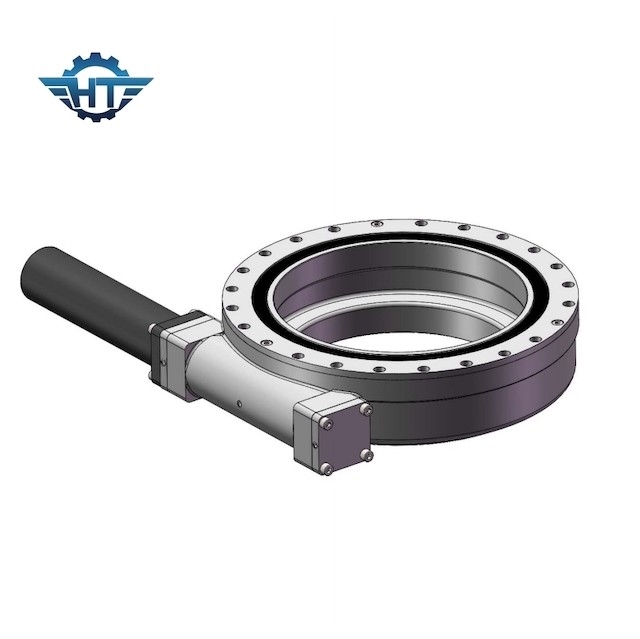

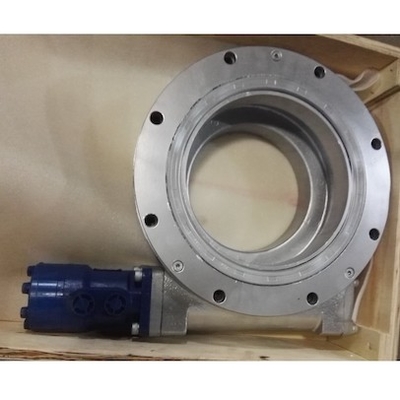

SE9 Slewing Bearing Drive With Hydraulic Motor For Outdoor Construction Platform Truck
Hydraulic Motor Slewing Drive
The slewing bearing drives are powered with hourglass worm technology to give maximum survivability load-holding as well as increased efficiency and accuracy.
There are many other applications as the slewing bearing drive is perfect for applications requiring both load-holding and rotational torque from the same gearbox and suitable for slow rotation with continuous or cyclical movements. It is suitable for solar tracker, models such as single axis and dual axis, which can be applied in flat single axis solar tracking system, oblique or tilted single tracking system and dual axis solar tracking system, and also in industries as engineering machinery, construction machinery and metallurgy, automated assembly line equipment, solar power, platform truck, environmental protection equipment, wind power generation and casting machinery, as well as various slow revolving machinery equipments.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self-locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
Oblique uniaxial application
The rotation axis of the inclined uniaxial tracking bracket is installed at an inclination angle to the horizontal plane, and rotates around a one-dimensional axis. The direction of the rotation axis is north-south direction, so that the light-receiving surface of the photovoltaic module is as perpendicular to the incident angle of sunlight as possible in one-dimensional direction.
Vertical axis application
"Altitude + azimuth" full tracking system, which moves along two rotation axes and has two rotational degrees of freedom, which can completely track the sun's trajectory to maximize the solar energy received. It is suitable for high latitude areas, and the power generation efficiency can be effectively increased by more than 35%, which significantly improves the power generation efficiency of photovoltaic systems.
