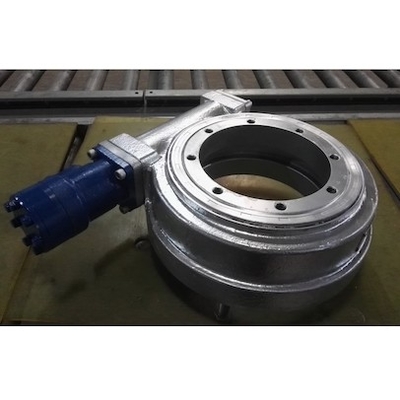

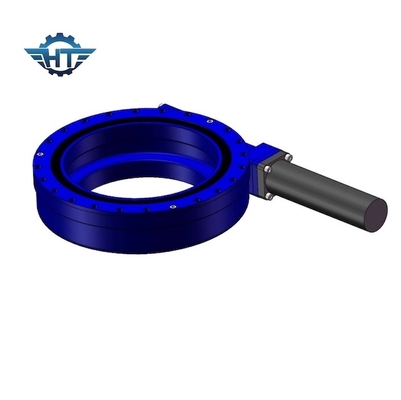

CE Solar Tracker Slew Drive Gearbox 100*100 Tube Torque Horizontal Installed

CE Certified Slew Drive, 100*100 Tube Torque Horizontal Installed For  CPV

100 Tube Torque CPV Slewing Drive

CPV application
Concentrated solar energy is a solar power generation technology that uses optical elements such as lenses or mirrors to focus a large area of ​​sunlight on a very small area, and then further utilizes it to generate electricity. Concentrated solar energy technology can be divided into three categories, namely three manifestations:
CPV Concentrated Photovoltaics: The concentrated sunlight is directly converted into electric energy (Concentrated Photovoltaics) through photovoltaic cells with high conversion efficiency; CPV is the most typical representative of concentrated solar power generation technology.
CST concentrated solar thermal: use the high heat generated by the concentrated sunlight to heat the liquid working medium, and then perform thermal power generation (Concentrated Solar Thermal)
CPVT: The combination of the above two (Concentrated Photovoltaics and Thermal) CPV concentrating photovoltaic systems can be divided into two categories according to the way of concentrating sunlight, that is, the reflective type using mirror concentrating and the transmission type using lens concentrating.Slewing drive or slewing bearing with hydraulic motor is one of our competitive products. It is self-designed and manufactured by our company. It can be applied as a rotation part in solar energy system, hydraulic aerial cage, gripping apparatus, hoisting crane,excavator and spare parts and etc.

Performance Parameters of SE series

Features

1. Gearbox reduction ratios of 31:1 up to 156600:1

2. High precision

3. Compact structure

4. 3000Nm to80000Nm of holding torque from 200Nm to 3700Nm of output torque

1. Minimizing the angle of incidence between the incoming light and tracker

2. Increasing energy production

3. High effective-cost

4. 5-8 teeth contact enabling high holding capacity

Applications

Changzhou Hangtuo specializes in the research, development and manufacture of rotary reducers. Products are widely used in flat single-axis, inclined single-axis, double-axis photovoltaic, trough, butterfly, tower solar thermal, photovoltaic, wind power generation, construction machinery (ship cranes, cranes, wood grabbers, coal mining equipment, aerial work Vehicles, flatbed transport vehicles, automatic rotating platforms) and many other fields. We continue to innovate and develop a variety of high-precision products, tailor-made solutions for customers, and meet the design needs of different customers in different forms.
