Product Details:
|
| Material: | QT | Model: | VE7" |
|---|---|---|---|
| Gear Ratio: | 51:1 | Standard Color: | RAL 9006 |
| Normal Output Torque: | 5100 Nm | Holding Torque: | 39 KNm |
| Tilting Torque: | 5 KNm | Max Torque: | 7650 Nm |
| Highlight: | single axis solar slew drive,tilted tracking system solar slew drive,50Mn solar slew drive |
||

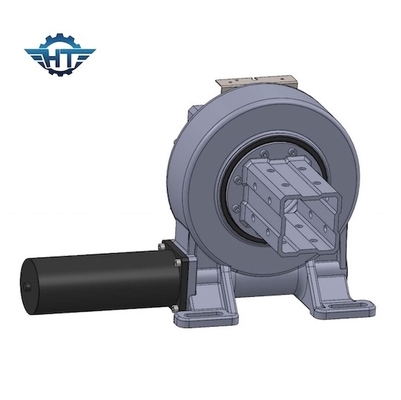

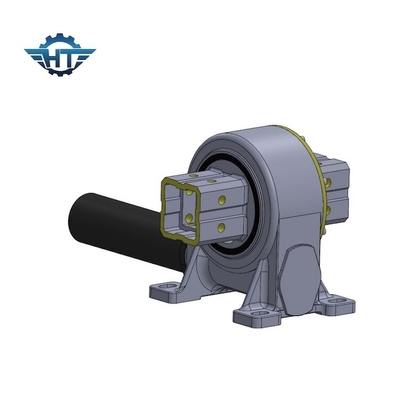

High Torque VE7 Vertical Single Axis Solar Slew Drive For Tilted Tracking System
ingle Axis Solar Slew Drive Description
The rotation axis of the oblique single-axis tracking bracket is installed at an inclination angle to the horizontal plane, and it rotates around a one-dimensional axis. The direction of the rotation axis is north-south, so that the light-receiving surface of the photovoltaic module is as perpendicular to the incident angle of sunlight as possible in the one-dimensional direction.
Parameters of VE Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. 360 degree rotating range
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Features
1. High torque output under low speed conditions, which can transmit comprehensive axial force, radial force, and overturning moment
2. Helical gear and worm drive mode. Good economy, strong flexibility in axial size
3. Envelope hourglass worm, multi-tooth contact, strong load-bearing capacity
4. High performance density ratio
5. Self-locking performance or add input brake
6. Small space ratio, convenient installation and disassembly
7. Diversified output forms
8. Pre-adjust the gap value and install directly on the machine
9. IP66
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
