Product Details:
|
| Type: | Enclosed | Application: | Construction Machinery |
|---|---|---|---|
| Driver: | Hydraulic Motor | IP Grade: | IP66 |
| Color: | As Requested | Effciency: | 40% |
| Model: | SE 21" | Life Time: | 30 Years |
| High Light: | Big Model Worm Slewing Drive,Overload Protection Worm Slewing Drive,SE21 worm drive slew ring |
||

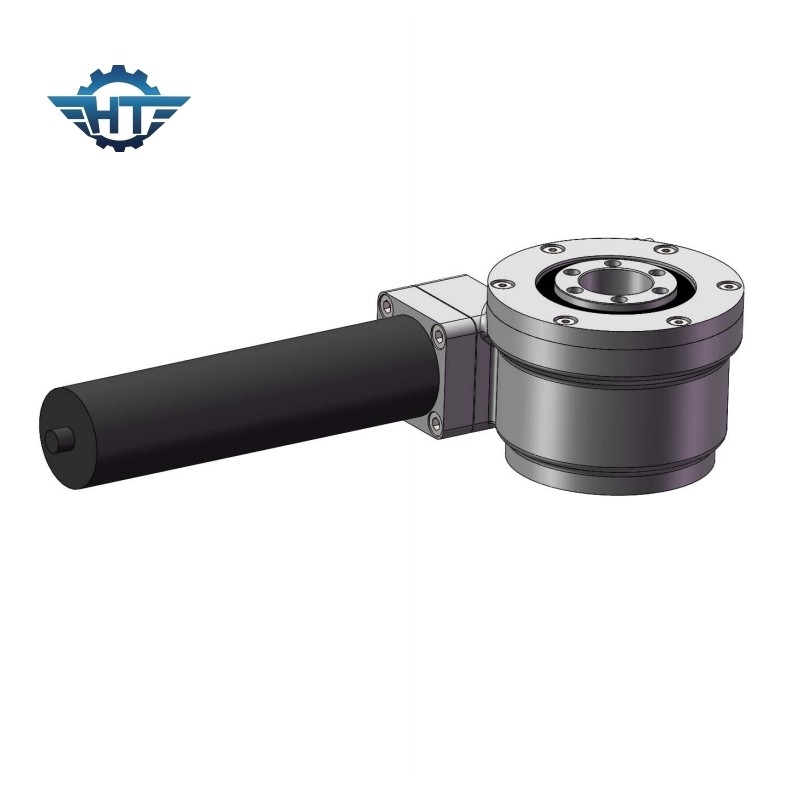

SE21 Big Model Slewing Drive, High Tilting Torque Hydraulic Driven For Construction Machinery
Construction Slewing Drive
With the wide application of construction machinery, more and more main engine manufacturers choose rotary drives, which are quite good in terms of load capacity and torque, thus ensuring the normal operation of the equipment.
Advantages Driven By Hydraulic Motor
1. High transmission power
2. low speed and stability
3. Overload protection capability
4. Flexible transmission arrangement.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self-locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
Self-propelled articulating arm climbing car
The articulated arm aerial work vehicle is a lifting device used for aerial work. It can cross obstacles and perform aerial work. When the platform is lifted to any position, it can be operated while walking. It has a compact structure and flexible steering. Narrow passages and crowded work areas.
Concrete pump truck
Concrete is the most commonly used building material. In order to transport concrete quickly and effortlessly in a specific area, we choose to use a concrete pump truck. By rotating the swivel arm of the concrete pump truck, the nozzle of the concrete pump is aligned with the desired position to complete the delivery of concrete. The slewing bearing plays a vital role in this process. When developing and designing the slewing bearing, special attention was paid to ensuring its accuracy and robustness for conditions on construction sites around the world, reliable high tipping moments to ensure stable pump operation.
