Product Details:
|
| Feature: | Self Locking | Application: | PV Mounting System |
|---|---|---|---|
| Motor: | Electric Motor | IP Class: | IP66 |
| Color: | As Requested | Efficiency: | 40% |
| Backlash: | 0.15° | Size: | 5 Inches |
| Highlight: | solar tracker drive,slewing gear |
||
IP66 Enclosed Solar Tracker Slew Drive With Electric Gear Motor For PV Mounting System
Solar Tracker Slew Drive Description

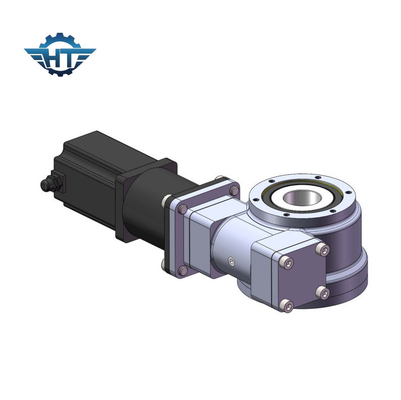

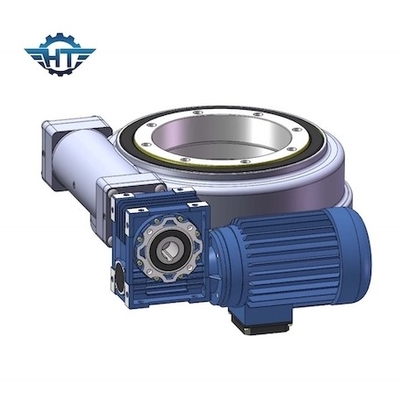

Product Name: SE5 Slewing Drive
Output Torque: 600 N.m ; 442.5 lbf.ft
Tilting Moment Torque 6000N.m ; 4425 lbf.ft
Holding Torque: 9200N.m ; 6785 lbf.ft
Axial Rating: 22 kN ; 4945.6 lbf
Radial Rating 12 kN ; 2697.6 lbf
Motor Option: 24V DC Motor ; 380V/220V AC Motor ; Stepper Motor ; Brushless Motor
Products Style Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower
Application Feature Solar Tracking System, Industurial
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
The slewing drive can be applied to the main engine that performs circular motion, such as crane turntables, rotating machinery, and other machines that perform circular work. This product can be widely used in the field of construction machinery represented by aerial work vehicles and truck cranes, as well as in the field of new energy represented by solar photovoltaic power generation and wind power generation, as well as in other fields of automation, machine tool manufacturing, aerospace communications, etc. The market potential of this product is is huge.
