| Feature: | Enclosed | Application: | Solar Energy |
|---|---|---|---|
| Motor: | Electric Motor | Effciency: | 40% |
| Size: | 9 Inches | Gear Ratio: | 61:1 |
| Material: | QT | Guarantee: | 5~10 Years |
| Highlight: | solar tracker drive,slewing gear |
||

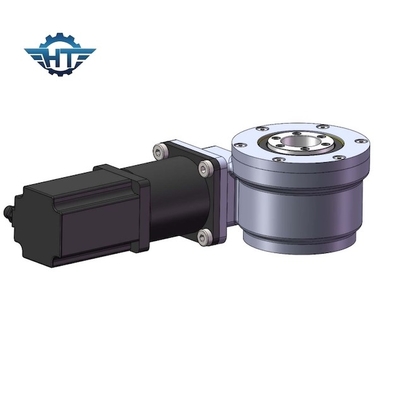

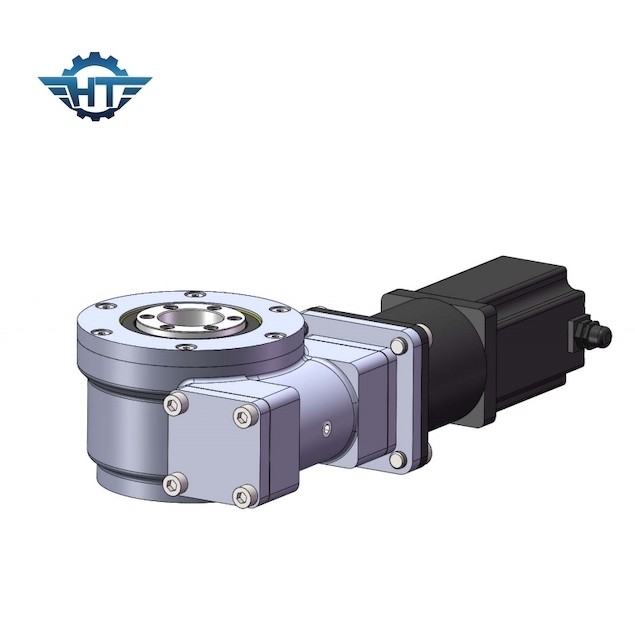

50Mn / 42CrMo Material SE9 Enclosed Housing Slew Drive Gearbox With Electric Motors
Slew Drive Gearbox Description
The enclosed housing worm gear slewing drive device is mainly used in the large torque output but the installation space is limited, and in the case of relatively high working conditions, such as dustproof, rainproof, anti-corrosion and other high requirements for the rotary structure part , the IP level reaches IP66. SE Slewing drives are assured for a 30-year field life and create an efficient and reliable solution in a single driving solar tracking system. We qualify all of our components and raw materials using standards set by ISO 9001, CE certifications to ensure field life.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
Products are widely used in solar tracking systems, aerial work vehicles, construction machinery vehicles, garden machinery, cranes and shipbuilding, construction machinery, playgrounds, automatic parking lots, mining and tunnel drilling machines, transportation and conveying devices, communication radar vehicles and Satellite ground receivers, etc. It is worth mentioning that our products are also used in concentrating solar power generation systems as key components in focused photovoltaics, solar thermal power or solar tracking guidance or heliostat tracking in concentrated photovoltaic and thermal systems.
