Product Details:
|
| Model: | SE9 | Gear Ratio: | 57:1 |
|---|---|---|---|
| Application: | Construction Machinery | Type: | Hydraulic Slew Drive |
| Driven Motor: | Hydraulic Motor | Warranty: | 12 Months |
| Certificates: | ISO9001, CE | Installation: | As Customers' Designs |
| Highlight: | IP66 Hydraulic Slewing Drive,Hydraulic Slewing Drive large Tilting Moment,large Tilting Moment solar slew drive |
||

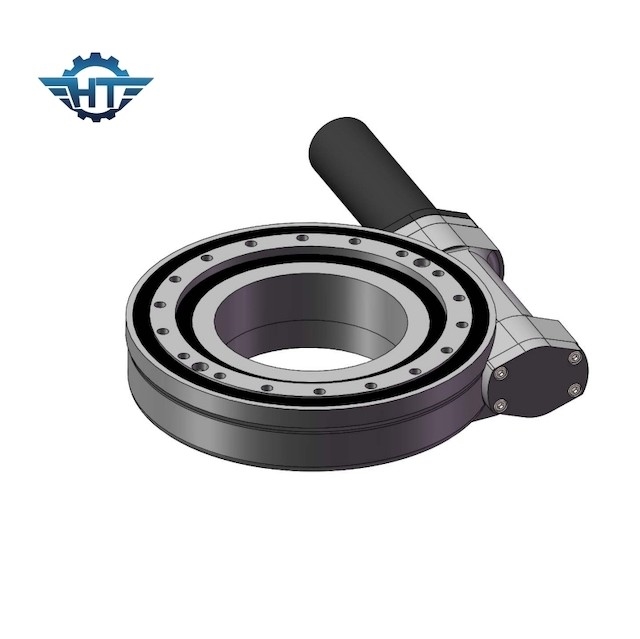

IP66 Hydraulic Slewing Drive, Large Tilting Moment For Open Field Construction Machine

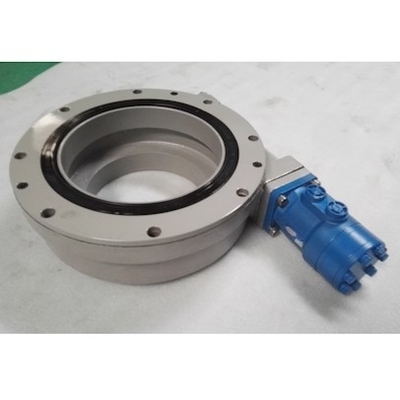

Hydraulic Slewing Drive
Slewing drive is a full-circumferential slewing deceleration transmission mechanism that integrates a driving power source. It uses a slewing bearing as a transmission follower and a mechanism attachment. and the casing, and the other ring is used as both a transmission follower and a connection base for the driven working part, so that the slewing bearing itself is a full-circle slewing connection, and the driving power source and the main drive are efficiently configured It is a universal deceleration transmission mechanism that integrates the functions of rotation, deceleration and driving, and at the same time has a simple structure and is convenient to manufacture and maintain.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self-locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Remarks:
1. Electric motor or hydraulic motor are optional accessories, users can choose according to their own needs.
2. Due to the large number of product models, please contact us by telephone for more detailed drawings.
3. Professional custom processing of various non-standard rotary drives according to user needs.
4. If you encounter problems during product selection and use, please contact us by email or phone.
Applications
Slewing drives are used when a structural part in a machine needs to be rotated along a fixed axis in the opposite direction to the other, while at the same time ensuring an axial and radial connection between the two parts.
Slewing drives are widely used, mainly but not limited to mechanical engineering, excavators, antenna systems, medical equipment industry, military, offshore technology, port cranes in railway vehicles, ship deck cranes, truck cranes and construction cranes. Telescopes, tunnel boring machines, wind turbines, solar power plants and trailers as well as in the field of aviation and aerospace.
