Product Details:
|
| Type: | Single Axis | Motor Voltage: | 24 V |
|---|---|---|---|
| Hall: | Optional | Installation: | Horizontal, Vertical |
| Color: | Silver Grey | Material: | High Strength Steel |
| Warranty: | 10 Years | ||
| Highlight: | SE1 Slewing Bearing Drive,Slewing Bearing Drive Nitride Steel,Small Slewing Drive Nitride Steel |
||

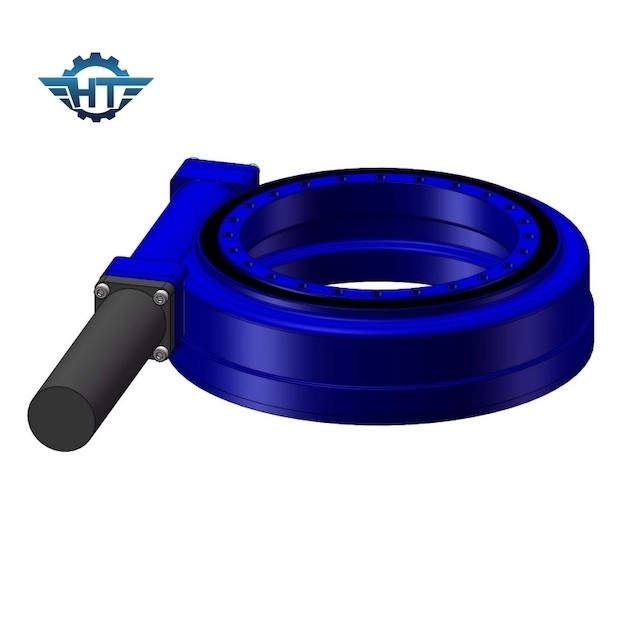

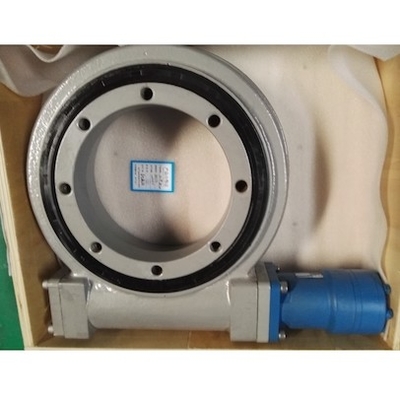

SE1 Small Slewing Drive Use High Strength Nitride Steel For Solar Tracking System
High Strength Slewing Drive
Heat Treatment of Slewing Drive
Raceway heat treatment: The raceways of the slewing bearing are surface-inductively quenched, and the quenching hardness is ensured at HRC 55-62, which can achieve sufficient depth of hardened layer.
Gear heat treatment: Due to the need to transmit force, one of the slewing rings usually has teeth. The heat treatment state of the gear is generally normalized or tempered. The tooth surface can also be quenched according to the user's requirements. The quenching hardness is between 50 and 60 HRC and sufficient depth can be guaranteed. Gear quenching can be divided into full tooth quenching and single tooth induction hardening depending on the application. Single-tooth induction hardening can be divided into tooth surface root quenching and tooth surface quenching.
Heat treatment of small slewing bearing Raceway heat treatment: The raceways of the slewing bearing are surface-inductively quenched, and the quenching hardness is ensured at HRC 55-62, which can achieve sufficient depth of hardened layer.
Technical Data of SE1 Slewing Drive
| SE1 Slew Drive | Motor Data | ||
| Rated Torque | 384 N.m | Rated Voltage | 24 VDC |
| Rated Speed | 0.06 RPM | Rated Current | <8 A |
| Max Output | Torque(3sec.) 460 N.m | Output Power | 25 W |
| Ratio | 32:1 | Rated Speed | 2 RPM |
| Temperature | -30℃~80℃ | Wire Length | 1 METER |
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
Flat uniaxial application
The flat single-axis tracking bracket is a form of tracking bracket with north-south arrangement and east-west tracking. According to the astronomical algorithm, the motor drives the bracket to make the module track the azimuth angle of the sun, increase the direct component of sunlight on the surface of the photovoltaic module, and then increase the power generation.
