Product Details:
|
| Gear Ratio: | 31:1 | Normal Output Torque: | 533 Nm |
|---|---|---|---|
| Holding Torque: | 7000 Nm | Tilting Torque: | 744 Nm |
| Rated Output Torque: | 0.065 RPM | Usage: | Mini Solar Trackers |
| MOQ: | 1 Piece | Protection Class: | IP66 |
| Highlight: | Planetary Motor Solar Tracker Slewing Drive,3 Inches Small Slew Drive,3 Inches hydraulic slew drive |
||

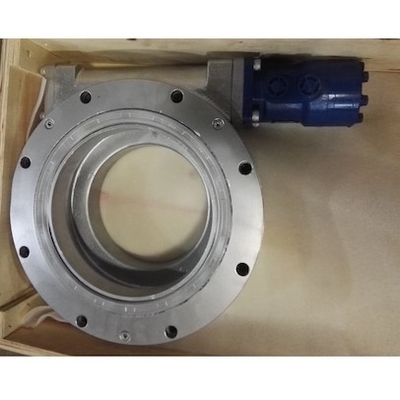

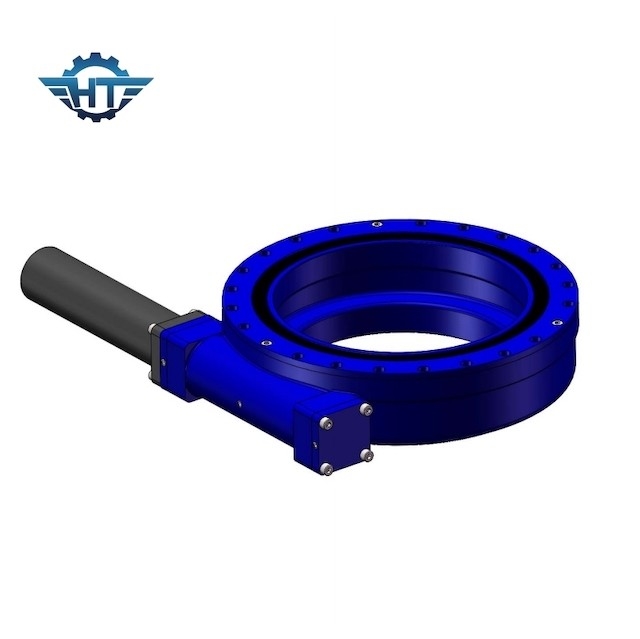

Planetary Motor Drived Solar Tracker Slewing Drives, 3 Inches For Mini Solar Trackers
Solar Tracker Slewing Drives Description
Because of their multiple uses, slewing drives come in a variety of model sizes, performance ranges and mounting characteristics. The drives are well suited for applications that require both load holding and rotational torque from the same gear box. They can also be made with dual axes of rotation, (turning axes at the same time) or with dual drives on the same axis, (two worm threads driving the same ring gear in one axis).
What can be customized:
1. Different motors (AC, DC, and Hydraulic) can be designed according to customer's requirement.
2. Shaft opposite to motor can choose to be hex head or not hex head.
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency | Precision (degree) |
IP | Working Tep (℃) |
Self-locking | Weight (kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Matched Planetary DC Motor Advantages
1. Adopt Dual supporting structure for output shaft so that the max torque of gearbox is increased a lot.
2. Sun wheel and planetary wheel are connected by spline which increase the max torque of gearbox and lengthen the life.
3. We use helical gear at input stage which make the noise low anf run smoothly in high speed. The inner gear ring is separated so that we can make more ratio and the design is flexible. Gearbox and motor are located by a seam fix by screw in axial which increase the matching precision and reduce noise.
4. We use rolling pin holder inside planetary wheel.we use rolling pin grinding instead of sliding grinding so the life of gearbox is much longer.
5. Double supporting structure; Internal grinding on inner bore of planetary gears making the inner bore roundness less than 0.003mm;running by rolling instead of sliding; HRC60 gear surface precision scraping;The adopting of all these technoligies ensure the super quiet and steady operating and a long life time over 10000 hours.
