Product Details:
|
| Material: | Cast Iron | Warranty: | 5~10 Years |
|---|---|---|---|
| Trademark: | Neutral, OEM, Customized | Application: | Single Axis Solar Tracking System |
| Color: | Customer Required | Name: | Slewing Drive |
| Motor: | 24, 12V DC | Installation Site: | Open Field |
| Highlight: | VE9 Worm Gear Drive,Worm Gear Drive Slow Rotating,Cast Iron worm wheel drive |
||

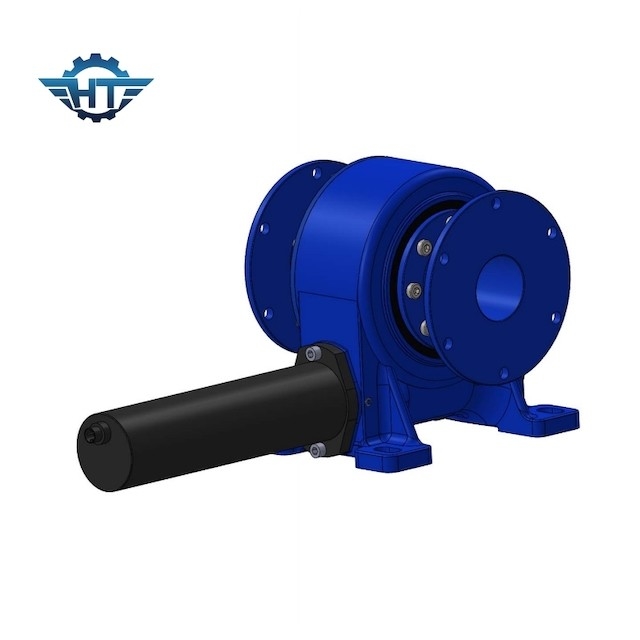

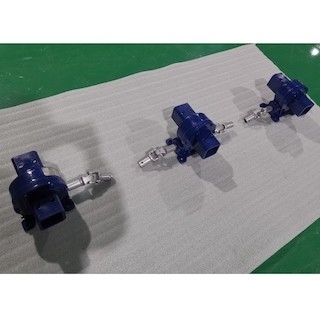

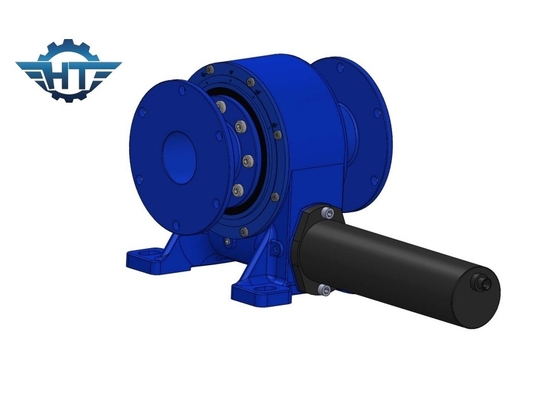

VE9 Worm Gear Slewing Drives For Slow Rotating High Precison Concentrated Solar Power
Worm Gear Slew Drive Description
VE9 Slewing drive can be basically divided into single worm slew drive and double worm slew drive.
1. Stable quality →Coming from good materials and technic
2. Low price →Not cheapest but lowest at the same quality
3. Fast Delivery → Sample order delivery within one week
4. Good service →Satisfactory service before and after sales
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Technical Data of DC Electric Motor
| Type | Voltage DC.(V) | No load | Rated | Max torque(Nm) | ||||
| Current (A) | Speed(rpm) | Motor speed (rpm) | Current (A) | Speed(r/min) | Torque(Nm) | |||
| ZYT80 | 24 | 0.8 (MAX) | 2.6 | 1100 | 3.8(MAX) | 1.7 | 250 | 300 |
Applications
