Product Details:
|
| Gear Ratio: | 102:1 | Efficiency: | 40% |
|---|---|---|---|
| Type: | Enclosed Housing | Application: | Horizontal Single Axis Linkage System |
| OEM Service: | Available | Driver: | DC Motor |
| Feature: | Self Locking | Color: | As Requested |
| Highlight: | hydraulic slew motor,solar tracker drive |
||

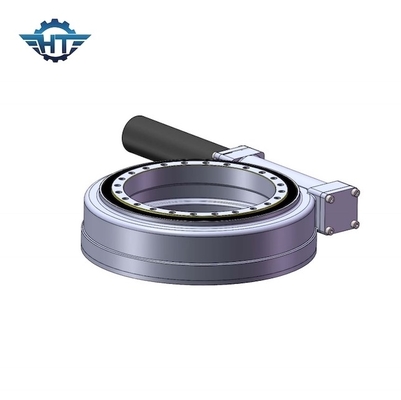

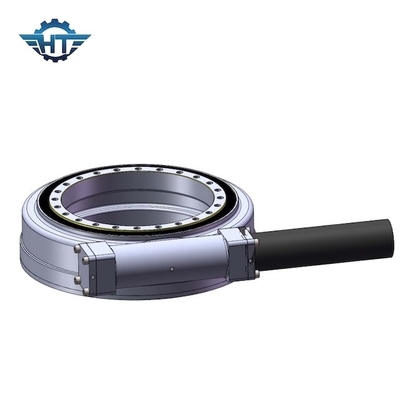

SE17 Self Locking Worm Gear Slew Drive For Horizontal Single Axis Linkage System
Worm Gear Slew Drive Description
Our custom slewing ring bearing solutions for the solar industry help harness the sun’s power in an efficient and cost-effective manner. Our slewing drives and worm gear drives deliver the highest dynamic and static torque load capacity in a small package. It is designed to help the rotation of the sun tracking system, and improves power generation efficiency.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
For solar: Concentrator Solar Dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough, PV tracker
For wind: it is uesd to rotate the pedestal in wind turbines
Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, Dock Crane, Timber Grab
Industry Market: Automation/Assembly line, robotic arm
Satellite: slew drive can be used for space communications and global positioning systems in satellite dish
