Product Details:
|
| Power Supply: | 24 VDC | Model: | SE Series |
|---|---|---|---|
| Feature: | High Precision Slew Drive | Material: | Casting |
| Certification: | ISO9001, CE | Output Torque: | 0.4~21 KNM |
| Protection: | IP66 | Place Of Origin: | Changzhou, China |
| Highlight: | slewing drive for solar tracking system,slew drive for solar tracker |
||

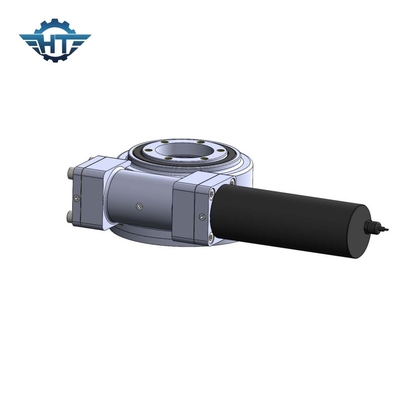

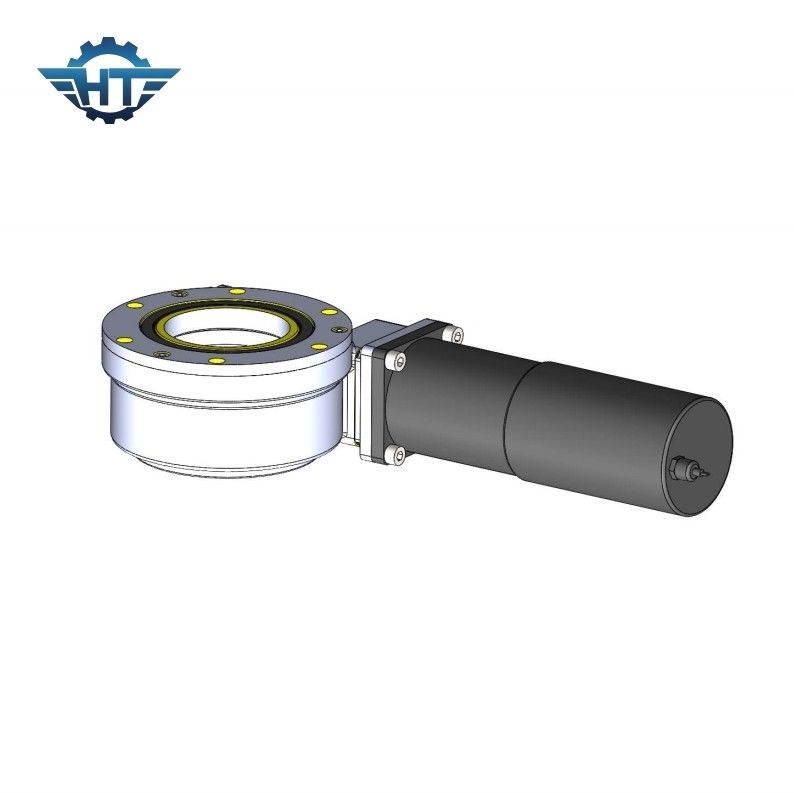

High Precision Worm Solar Small Slew Drive With Quenched Gear Surface For Solar Trackers
Worm Solar Small Slew Drive Description
The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis or in multiple axes together. Slewing drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Application
Slewing drives are mainly used in special vehicle steering platforms, heavy-duty flatbed trucks, container cranes, truck-mounted cranes, truck cranes, aerial work vehicles, cranes, gantry cranes, small wind power stations, aerospace communications, satellite reception, solar tracking systems and many other industries. Especially in recent years, the rapid development of solar photovoltaic power generation industry is widely used. The rotary drive is used in the solar photovoltaic power generation industry, and is generally equipped with a rotary geared motor or an AC geared motor; in construction machinery, a hydraulic motor is mainly configured as a power drive.
