Product Details:
|
| Place Of Origin: | Changzhou, China | Certification: | ISO9001, CE |
|---|---|---|---|
| Protect Feature: | Enclosed IP66 | Warranty: | 10 Years |
| Size: | 3 Inches To 25 Inches | Application: | Renewable Solar Energy |
| Accuracy: | 0.15° | Color: | As Requested |
| Highlight: | slewing drive for solar tracking system,slew drive for solar tracker |
||

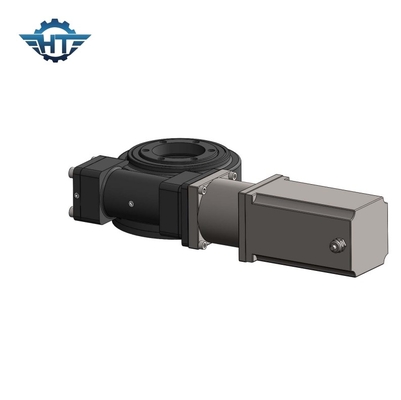

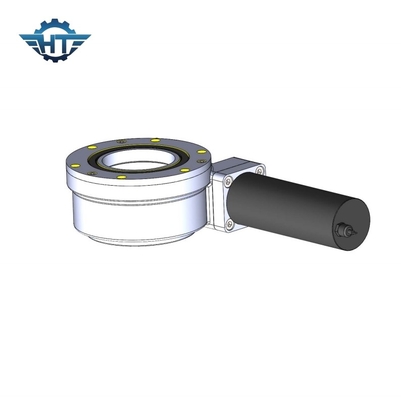

Small Solar Tracker Envelope Worm Gear Slew Drive For Renewable Solar Energy
Envelope Worm Gear Slew Drive Description
The slewing reducer, slewing support, enveloping reducer, and slewing drive provided by our company are designed and tested according to the 30-year outdoor service life. All engineering process control aspects are considered to reduce costs, enhance reliability and 30 years performance, the same processing technology and operating procedures have allowed us to obtain ISO9001, CE certification. Our laboratory can test the load, service life, stiffness and rotation accuracy every day.
In order to realize the tracking function of the solar tracking system, a set of mechanical system is needed to drive the photovoltaic panel so that it rotates with the solar trajectory. At the same time, the photovoltaic tracking system should meet the mechanical properties of the wind speed of the conventional bracket system, and also have a certain output torque to resist the corresponding wind resistance, so as to realize the dynamic operation of the photovoltaic bracket and tracker under certain wind speed. The slew drive is a good choice.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Application
Hangtuo's practical, high-quality rotary drive products provide reliable mechanical execution components for flat single-axis, double-axis photovoltaic tracking, trough, butterfly, and concentrating systems, and meet the needs of aerial work vehicles, truck-mounted cranes, and wood grabbers. , roadheaders, spray equipment, hydraulic module vehicles, automated assembly lines, wind yaw systems and other needs for smooth operation.
