Product Details:
|
| Model: | SE3" | Feature: | Enclosed House Small Size |
|---|---|---|---|
| Application: | Construction Machinery | Tooth Surface: | Quenched |
| Certification: | ISO9001, CE | Protect Feature: | Enclosed IP66 |
| Color: | As Required | Weight: | 10 KG |
| Highlight: | slewing drive for solar tracking system,solar tracker drive |
||

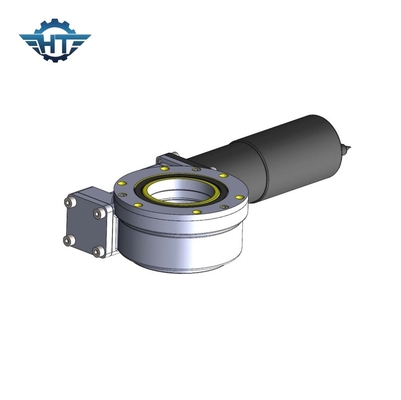

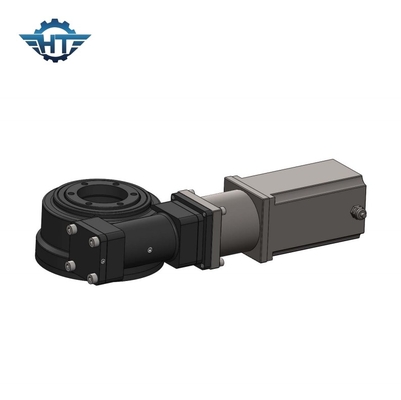

Turntable Small Size Solar Tracker Slew Drive For PV Mounting Tracking System
Small Size Solar Tracker Slew Drive Description
Slewing ring drive is composed of bearings, worm, base, house and other accessories. The key important part slew bearing is with compositive large loads carrying capability, which can accommodate axial load radial load and tilting torque simultaneously. These bearings normally have mounting holes, inside gears or outside gears lubricating holes and sealing.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Features
1. Compact configuration
2. Light weight
3. Good rigidity
4. Smoothly running
5. High precision
6. Reliable safety
Applications
Applications of the bearings are found in the industries such as engineering/project metallurgy, mining, oil, chemistry, light industry, aviation, harbor/quay, vessels, military industry, instruments and meters etc.
