Product Details:
|
| Gear Ratio: | 61:1 | Efficiency: | 40% |
|---|---|---|---|
| Type: | Enclosed | Application: | Industrial Use And PV Trackers |
| OEM Service: | Available | IP Class: | IP66 |
| Color: | As Requested | Material: | QT |
| Highlight: | solar tracker drive,slewing drive for solar tracking system |
||

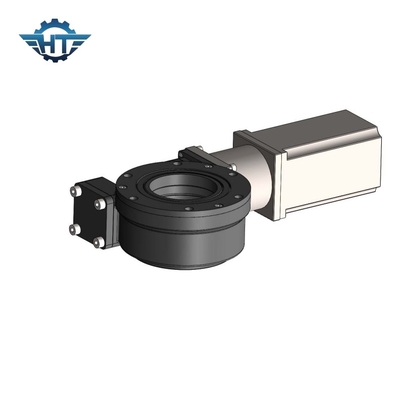

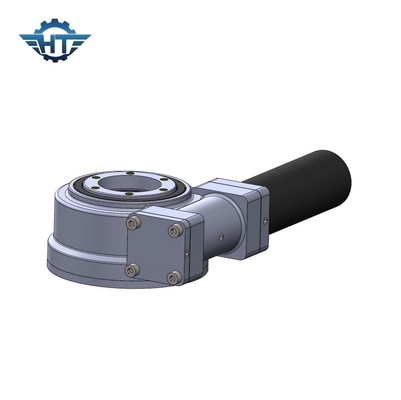

Single Axis Worm Gear Slewing Drive Stepper Motor For Industrial Use And PV Trackers
Worm Gear Slewing Drive Description
Single axis SE9 slewing ring drive can be suitable for many applications and come with a variety of options, including:
1. Hydraulic motors
2. Electric motors
3. Pneumatic motors
4. Encoders
5. Brakes
6. Tracking precision to 0°
7. Open chassis
8. Enclosed chassis
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
The enclosed design makes the SE Series resistant to damage from wind, rain and other harsh environments and ideal solution for matching the relative rotation of two objects. The SE Series slewing drive can be used for both indoor and outdoor applications, including:
1. Truck Cranes
2. Satellite Dishes
3. Solar Trackers
4. Wind Turbines
5. Utility Equipment
6. Automotive Lifts
