Product Details:
|
| Type: | Slewing Drive | Material: | QT |
|---|---|---|---|
| Warranty: | 3~10 Years | Size: | 3 Inches To 25 Inches |
| Application: | Sun Tracking System | Color: | Customer Required |
| Motor: | AC Or DC Or Hydraulic Motor | Feature: | Quick Installation |
| Highlight: | slewing drive for solar tracking system,solar tracker drive |
||

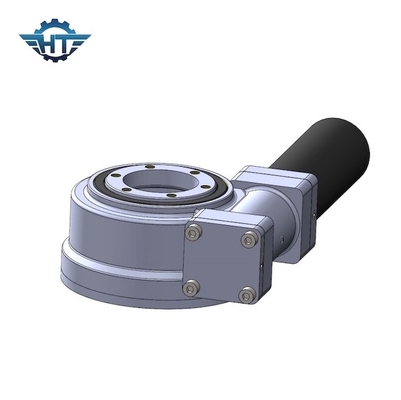

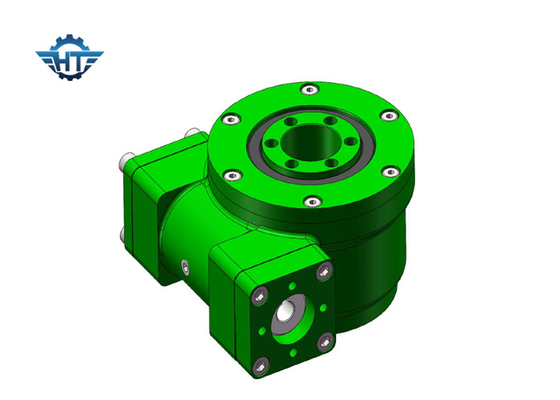

Highly Compact Solar Tracker Slew Drive Of Multi Tooth Contact Worm And Gear
Solar Tracker Slew Drive Description
According to the open distinction of the slew drive sub-mechanism, the rotary drive can be divided into open and closed, usually open structure is mostly used in the environment is too bad, maintenance and maintenance cycle is short of applications, open structure is more convenient for the inspection, maintenance and maintenance of parts, but also easier to replace. Closed structures provide a longer maintenance lifecycle in situations where environmental conditions change little and the level of environmental pollution below medium is below. The rotary drive can be used in any case where there is a need for a full-week rotation and variable speed requirements, and the rotary drive is the best solution when it is necessary to achieve power transmission with greater torque, high precision motion transfer, or a high degree of mechanism selection with compact integration of body structure.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Servo Motor
1. Faster
Shortened positioning time
Quick instruction tracking
Response frequency up to 1KHz bandwidth
Built-in RS-485 communication.
2. More Reliable
3 times overload
Grade 2 Notch Filter
Regenerative functions
Built-in dynamic brakes (optional)
3. More Accurate
High resolution encoders up to 20bit (1,048,576 ppr)
Load inertia detection
Fully closed-loop function
