Product Details:
|
| Type: | Slewing Drive | Transport Package: | Plywood Box, Pallet |
|---|---|---|---|
| Application: | Solar Power System | Warranty: | 10 Years |
| Color: | As Required | Export Port: | Shanghai Port, Ningbo Port |
| Motor: | 24V DC | Feature: | Long Lifetime |
| Highlight: | 5" Solar Tracker Slewing Drive,Photovoltaic Solar Tracker Slewing Drive,Annular Worm Structure slew drive motor |
||

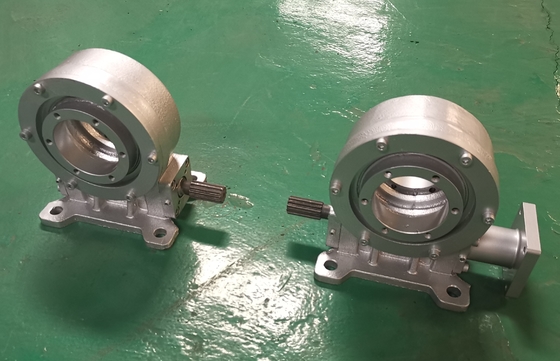

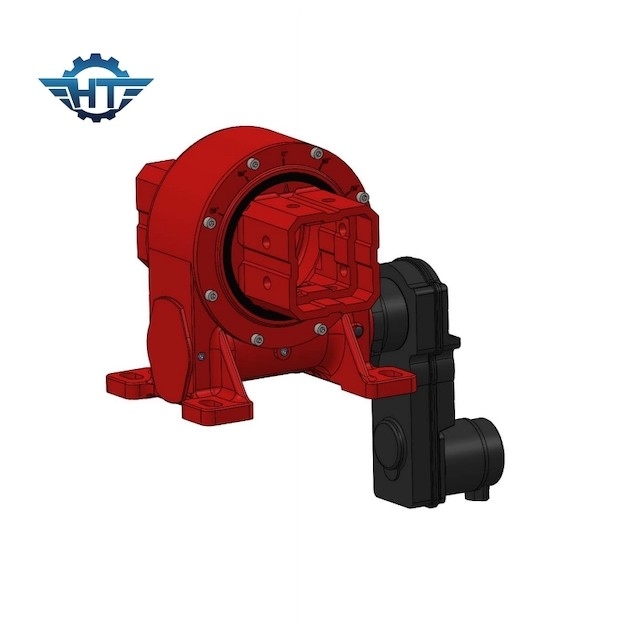

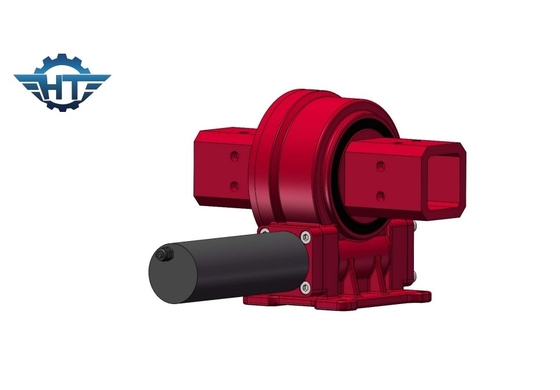

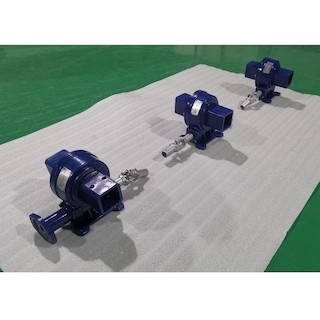

5 Inches Electric Solar Slewing Drives For Photovoltaic Home Tracking System
Electric Solar Slewing Drives Description
Due to the use of slewing bearing and annular worm structure, the rotary reducer can achieve multi-tooth contact, and has the characteristics of large transmission torque and stable operation; it can withstand large radial and axial loads and strong overturning moments. Wind resistance ability is being widely used in solar photovoltaic power generation tracking system and other new energy industries by domestic and foreign customers. The products currently have 10 models ranging from 3 inches in diameter to 25 inches in diameter, and more than 60 varieties, which can meet the needs of different forms of photovoltaic, photoelectric, photothermal general and precision tracking.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Photovoltaic solar panel power station tracking sytem includes flat single-axis linkage, oblique single-axis linkage, oblique single-axis, and two-axis tracking system.
1. Flat single axis linkage
Suitable for latitudes below 30 degrees and ground slopes less than 12 degrees.
2. Oblique single axis linkage
Suitable for medium to high latitudes, the ground needs to be approximately flat.
3. Oblique single-axis unit
Suitable for medium to high latitudes.
4. Dual axis
