Product Details:
|
| Material: | 50Mn, 42CrMo | Rated Output Torque: | 2000 Nm |
|---|---|---|---|
| Holding Torque: | 13500 Nm | Tilting Torque: | 13200 Nm |
| Model: | SDE7" | Gear Ratio: | 57:1 |
| Efficiency: | 40% | Standard Color: | RAL 9006 |
| Highlight: | Brushless Motor Solar Slewing Drive,50Mn Solar Slewing Drive,220V Solar Tracker Slewing Drive |
||

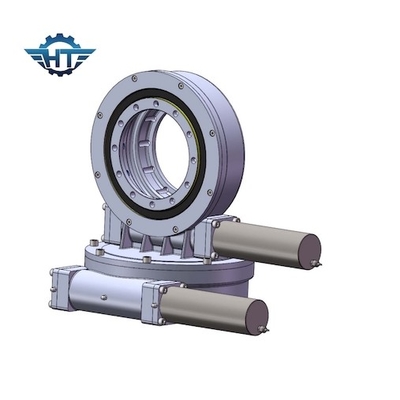

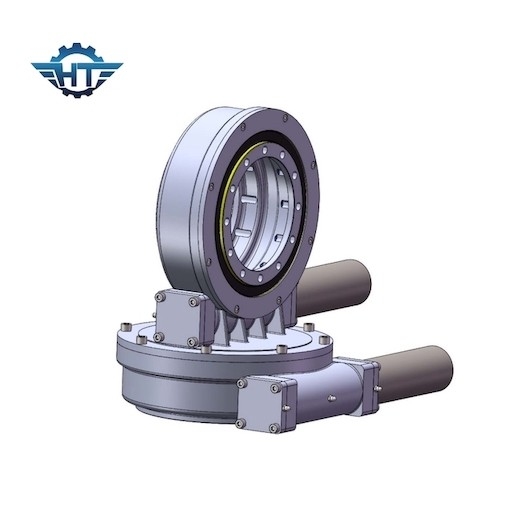

SDE7 Solar Tracker Slewing Drive For Solar Thermal Power And Parabolic Mirror CSP
Solar Tracker Slewing Drive Description
Dual axis slew drives are perfect solutions in the CSP applications. CSP, concentrated solar power, have four types:
In general, solar thermal power generation has the following four types: trough, tower, dish (disc), and Fresnel.
Trough
The trough type solar thermal power generation system is called a trough parabolic mirror solar thermal power generation system. The trough type parabolic concentrating collectors are arranged in series and parallel, heating the working medium, generating superheated steam, and driving the steam turbine generator set to generate electricity.
Tower
In 1973, the outbreak of the worldwide oil crisis stimulated the research and development of solar technology. Compared with solar cells, the price is high and the efficiency is low. The efficiency of solar thermal power generation is relatively high and the technology is relatively mature.
Dish
The disc type (also known as dish) solar thermal power generation system is the world's first solar power system. It is composed of a parabolic mirror composed of many mirrors. It receives the focus of the paraboloid and the heat transfer medium in the receiver is heated. Drive the engine to generate electricity at around 750℃.
Fresnel
The working principle is similar to trough type photothermal power generation, except that the Fresnel structure condenser is used instead of the mirror. This makes it relatively inexpensive, but the efficiency is correspondingly reduced.
Because such a system has only a few times of concentrating, the quality of the heated water vapor is not high, so that the annual power generation efficiency of the whole system can only reach about 10%; but due to the simple structure of the system and the direct use of heat-transfering medium to generate steam, Its construction and maintenance costs are also relatively low.
SDE7 Slew Drives Applied In Tower CSP
| Product Name | SDE7 Slewing drive with 43Nm 24Vdc gear motors |
| Output Torque | 980 N.m ; 723 ft.lbs |
| Max Output Torque | 1938 N.m; 1429 ft.lbs |
| Tilting Moment Torque | 7000 N.m; 5163 ft.lbs |
| Holding Torque | 13200 N.m ; 9736 ft.lbs |
| Static Axial Rating | 133.20 kN ; 29943 lb |
| Static Radial Rating | 53 kN ; 11977 lb |
| Dynamic Axial Rating | 31.90 kN ; 7171 lb |
| Dynamic Radial Rating | 27.91 kN ; 6274 lb |
| Motor Alternatives | 380V/220V AC Motor ; Stepper Motor ; Brushless Motor |
| Products Style | Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower |
| Application Feature | Solar Tracking System, Industrial Machiner |
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes |
705kg |
