24VDC Planetary Gear Motor VE Series Slew Drive For Optimized Solar Trackers

I'm Online Chat Now

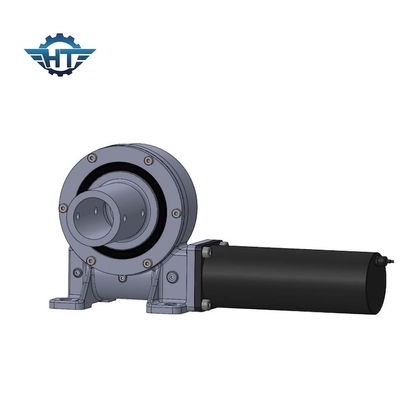

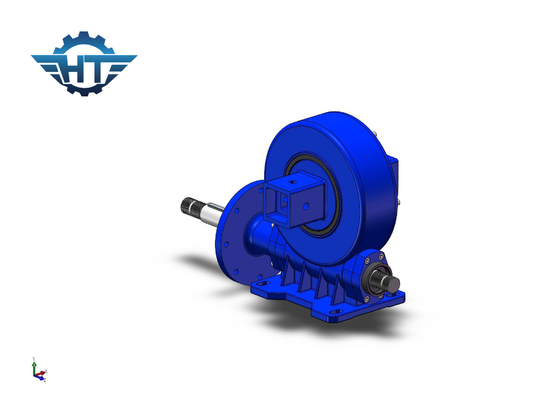

24VDC Planetary Gear Motor VE Series Slew Drive For Optimized Solar Trackers

24VDC Planetary Gear Motor VE Series Slew Drive For Optimized Solar Trackers
24VDC Planetary Gear Motor VE Series Slew Drive For Optimized Solar Trackers 24VDC Planetary Gear Motor VE Series Slew Drive For Optimized Solar Trackers

Large Image :  24VDC Planetary Gear Motor VE Series Slew Drive For Optimized Solar Trackers

Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month

24VDC Planetary Gear Motor VE Series Slew Drive For Optimized Solar Trackers

Description
Gear Ratio: 31:1~150:1 Normal Output Torque: 400~21000 Nm
Place Of Origin: Changzhou, China Holding Torque: 1800~89000 Nm
Tilting Torque: 1000~112760 Nm Rated Output Torque: 0.02~1 RPM
Usage: Optimized Solar Trackers Protect Feature: IP66
Highlight:

solar tracker drive

,

slewing drive for solar tracking system

24VDC Planetary Gear Motor VE Series Slew Drive For Optimized Solar Trackers



VE Series Slew Driv​e Description



It makes sense to invest in solar trackers that employ strong, reliable, field-tested slewing drives for movement. A drive that uses hourglass worm technology will offer the greatest level of strength and power thereby increasing field life and decreasing downtime.



High quality, stable, durable slew drives will continue to help generate optimal power more reliably.



VE Model Performance Parameters



Model Rated Output Torque (N.m) Holding Torque (kN.m) Tilting Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(Degree)

IP Working Tep(℃) Self-locking Weight (kg)
3" 806 9 5 22 15 31:1 40% ≤0.15 66 -40~+80 Yes 12kg
5" 962 30 6 16 27 37:1 40% ≤0.15 66 -40~+80 Yes 18kg
7" 7344 60 10 34 58 51:1 40% ≤0.15 66 -40~+80 Yes 32kg
8" 8000 70 14 50 80 50:1 40% ≤0.15 66 -40~+80 Yes 28kg
9" 8784 80 16 60 130 61:1 40% ≤0.15 66 -40~+80 Yes 52kg
12" 11232 100 25 77 190 78:1 40% ≤0.15 66 -40~+80 Yes 65kg
14" 12240 120 48 110 230 85:1 40% ≤0.15 66 -40~+80 Yes 88 kg
17" 14688 136 67 142 390 102:1 40% ≤0.15 66 -40~+80 Yes 135 kg
21" 18000 140 89 337 640 125:1 40% ≤0.15 66 -40~+80 Yes 192 kg
25" 21600 150 112 476 950 150:1 40% ≤0.15 66 -40~+80 Yes 251 kg



Features



Slew drive is a new kind of slew products, with its compact design, easy to mount and save more space. Slew drive consists of worm, slew ring, end cup, motor and so on. The core part is slewing bearing, so slew drive can also bear axial, radial loading and titling moment at the same time.

Solar Tracking system & How They Work

A solar tracking system positions various loads―such as solar PV panels, mirrors, reflectors or lenses―toward the sun. Trackers are used to maximize the amount of incoming light by following the sun as it moves across the sky all the time. Solar trackers are categorized by the number and orientation of their axes and whether they employ fixed, single or dual axis tracking systems.
