Product Details:
|
| Model: | 9 Inches | Gear Ratio: | 61:1 |
|---|---|---|---|
| Application: | Single Solar Tracking System | Place Of Origin: | Changzhou, China |
| Driver: | DC Motor | Installation: | Vertical |
| Color: | As Requested | Backlash: | ＜0.03 ° |
| Highlight: | slewing drive for solar tracking system,solar tracker drive |
||

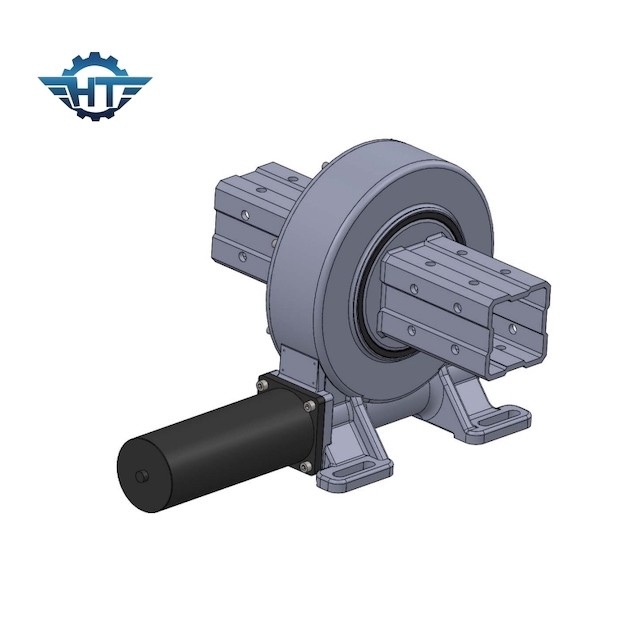

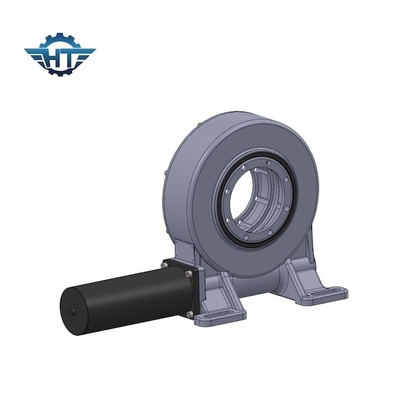

Vertical Mounted Small Worm Gearbox For Single Solar Tracking System
Small Worm Gearbox Description
Slewing drive is a compact design applied in scale solar industry. It can be also applied in mobile applications, including man lifts, lifting cranes and paving machines, satellite, robot, industrial, etc. We offer an extensive range of slew drives to meet our customers’ specifications and needs. Our slew drives deliver on safety, reliability and availability.
The gear and worm are contact in a condition of near perfect mesh. This will in turn allows for a highly efficient transfer of driving force, uniform load distribution and a very impressive level of positioning accuracy in slewing drive.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Advantages
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side,
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High accuracy
