Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | VE9" |
|---|---|---|---|
| Hardness: | Hardened | Rated Output Torque: | 8784 Nm |
| Holding Torque: | 80000 Nm | Tilting Torque: | 16000 Nm |
| Transport Package: | Wooden Box | Precision: | 0.15° |
| High Light: | 100*100 Tube Solar Tracker Slew Drive,PV Solar Tracker Slew Drive,100*100 Tube hydraulic slew drive |
||

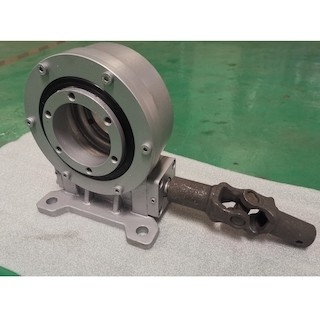

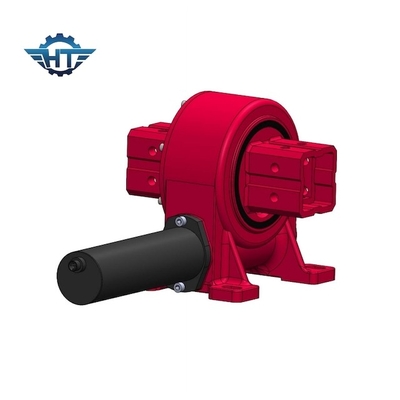

VE7 Single Axis Slewing Drive With Tube Size 100*100 For Linkage Solar Power System
Single Axis Slewing Drive Description
Different sizes square output based on customers' needs and demands, our worm gear slewing drives are the most cost-effective and optimum solutions for single axis PV trackers. They are designed, tested, and guaranteed for accuracy and performance for a 30-year field life time. Compared with fixed PV trackers which could produce the highest levels of energy only when the sun is at the optimum angle to the panel, the PV trackers could be directly towards the sun from sunrise to sunset.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Package
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
