Product Details:
|
| Model: | 9 Inch | Gear Ratio: | 61:1 |
|---|---|---|---|
| Efficiency: | 40% | Precise: | ≤0.15° |
| Driver: | Electric Motor | Type: | Vertical Mounted |
| Application: | Linkage Single Solar Tracking System | Color: | As Requested |
| Highlight: | slewing drive for solar tracking system,solar tracker drive |
||

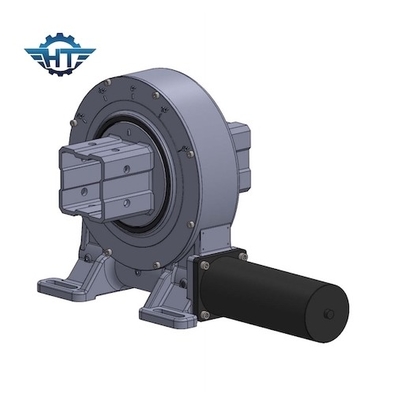

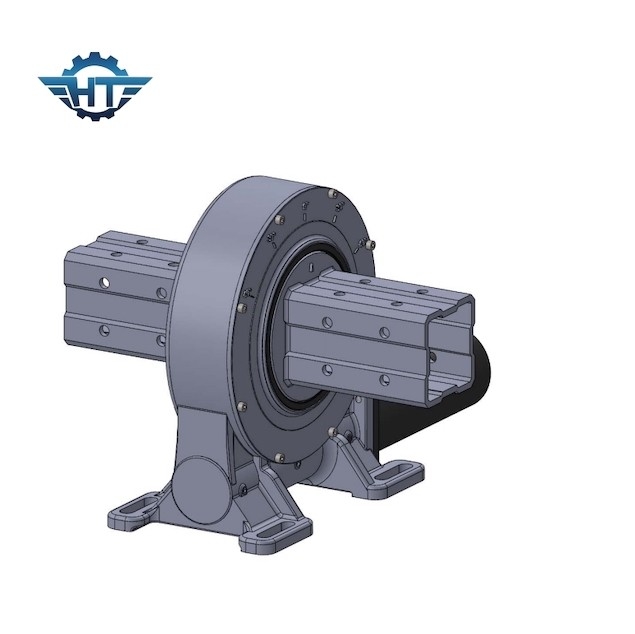

VE9 Enclosed Housing Slewing Drive For Linkage Single Solar Tracking System
Enclosed Housing Slewing Drive Description
Compared with the traditional rotary products, the slewing drive reducer has the characteristics of easy installation, easy maintenance, compact installation space, etc. At the same time, its application in many fields also combines its own advantages, which not only reduces the manufacturing cost, but also improves the performance of the rotary reducer. The product quality of the slewing drive reducer is guaranteed.
Truck-mounted cranes have high requirements for slewing drives, and require products with strict safety and reliability. We have long cooperated with leading foreign truck crane companies to develop cost-effective slewing products, and have accumulated rich experience in product design and application. The truck-mounted crane market offers a strong heart.
Hangtuo specializes in the research, development and manufacture of rotary reducers. Products are widely used in flat single-axis, inclined single-axis, double-axis photovoltaic, trough, butterfly, tower solar thermal, photovoltaic, wind power, construction machinery (ship cranes, cranes, wood grabbers, coal mining equipment, aerial work Vehicles, flatbed transport vehicles, automatic rotating platforms) and many other fields.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Advantages
1. Strong overturning moment based on slewing ring
2. Adopt enveloping worm drive
3. Drive larger load for using multi tooth contact
4. Better static self-locking function
Applications
It’s application include solar power systems, special vehicle steering, heavy-duty flat-panel truck, container cranes, truck mounted crane, automobile crane and aerial vehicles, cranes, gantry cranes, small wind power stations, space communications, satellite receiver, etc..
