Product Details:
|
| Type: | VE9 | Material: | 42CrMo Or 50Mn |
|---|---|---|---|
| Warranty: | 5~10 Years | Size: | 3 Inch To 25 Inch |
| Type Of Tooth: | Helical Tooth | Motor: | DC Motor |
| Color: | Customer Required | Application: | 2 Portrait PV Solar Tracking System |
| Highlight: | 24VDC Gear Motor Solar Slew Drive,VE7 Solar Tracker Slew Drive,Helical tooth Solar Slew Drive |
||

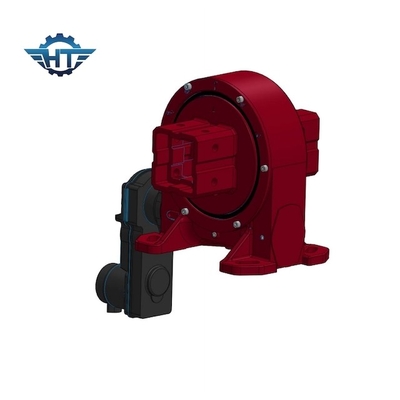

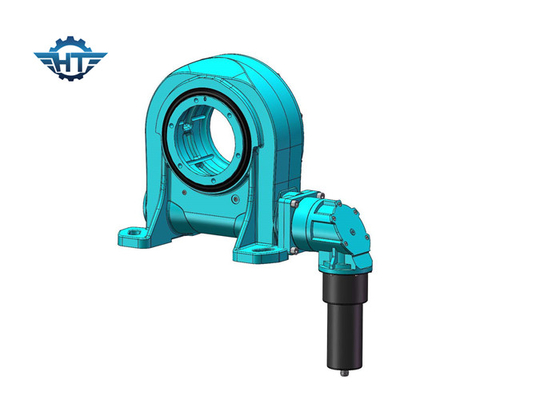

VE7 Solar Tracker Slew Drive with 24VDC Gear Motor For 2 Portrait PV Solar Tracking System
VE7 Solar Tracker Slew Drive Description
Hangtuo’s slewing drives employ precision technology that provides a large ratio in a single stage of gearing. The bearing and gears are assembled into a low profile, self-retaining, and ready-to-install housing. We have the capability to provide custom solutions for specific applications.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Features
These highly-adaptable products also feature strong shock resistance, long life performance, smooth rotation, bearing protection, and sealed drive options.
Applications
Our products include slewing drives and related components, which are mainly applied in single or dual axis solar tracking systems, construction vehicles, port machinery, modular vehicles and small wind power systems.
Slewing drives/reducers are being chosen by customer from home and aboard for PV/CPV/CSP solar thermal tracking systems due to the combination of slewing ring with the hourglass worm shaft, which provides more tooth contact, increased drive torque and smoother rotation. There are different sizes available from 3 inch to 25 inch with more than 60 models to meet both regular and precise tracking requirements in PV, CPV, CSP and solar thermal power tracking fields.
