Product Details:
|
| Model: | 3 Inch | Gear Ratio: | 31:1 |
|---|---|---|---|
| Efficiency: | 40% | Install: | Vertical |
| Type: | Single Worm And Enclosed House | Application: | Solar Energy |
| OEM Service: | Available | Place Of Origin: | Changzhou, China |
| Driver: | 24V Planetary Motor | Material: | 42CrMo |
| Highlight: | VE3 Small Solar Tracker Slewing Driv,Slewing Drive Motor Single Worm,VE3 Small electric slew drive |
||

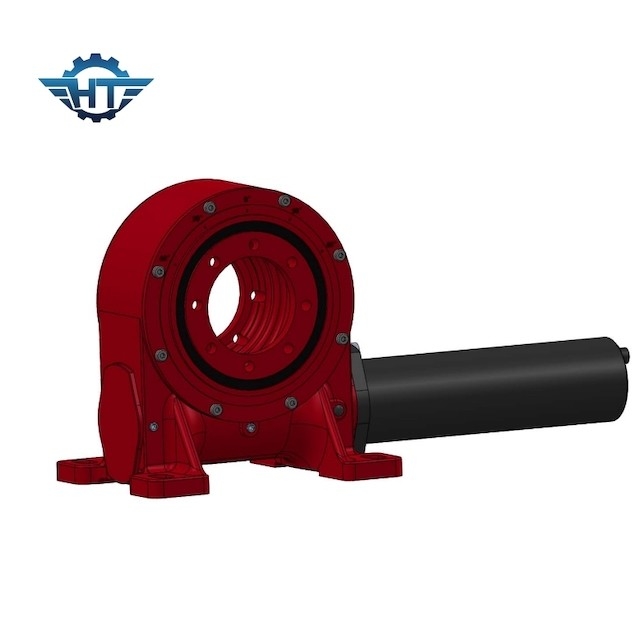

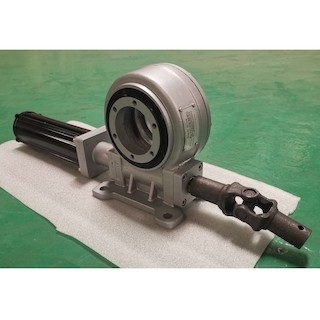

VE3 Small Size Slewing Drive, IP66 For 30 Field Life Applied In Solar Tracking System
IP66 30 Field-life Slew Drive
According to the openness of the slewing drive transmission mechanism, the slewing drive can be divided into open type and closed type. Usually, the open type structure is mostly used in applications where the environment is too harsh and the maintenance and maintenance cycle is short, and the open type structure is more convenient for parts. inspection, maintenance and maintenance, and more convenient replacement. On the other hand, where the environmental conditions do not change much and the environmental pollution level is below the medium level, the closed structure can provide a longer maintenance life cycle.
The slewing drive can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis, or in multiple axes together. Slewing ring drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox
Product Advantages
The outstanding advantages of the slewing drive are as follows:
• The design is very compact, suitable for installation of mechanical equipment with limited space.
• Very high load carrying capacity in a very compact design.
• long lasting.
• Low maintenance costs.
• Cast housing protects internal parts.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Holding Torque (N.m) |
Tilting Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency | Precision | IP | WorkingTep.(℃) |
Self- locking |
Weight (kg) |
| 3" | 600 | 1800 | 1500 | 22 | 15 | 31:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 12 |
| 5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 18 |
| 7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 32 |
| 8" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 28 |
| 9" | 4300 | 30800 | 16000 | 60 | 130 | 61:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 52 |
| 12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 65 |
| 14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 88 |
| 17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 135 |
| 21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 192 |
| 25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes |
251 |
Applications
Design features and application fields of new type slewing drive (worm gear and worm slewing mechanism)
The shell is made of high-quality cast steel with very high strength. The worm gear and worm are all are made of 42CrMo and photoion nitrided. The wear resistance and strength are higher than the traditional domestic gas nitriding 50Mn material. Stronger than the hardness, the service life is longer. This product can be used for flatbed transport vehicles, log cranes, single-column cranes, beam lifters, truck-mounted cranes, aerial work vehicles, solar energy for solar inspections, automation equipment and other mechanical equipment; in the solar photovoltaic power generation industry, slewing drives are generally equipped with DC planetary geared motors or AC geared motors are mainly used; in construction machinery, hydraulic motors are mainly used as power drive systems.
