Product Details:
|
| Type: | Worm And Worm Gears | Material: | 42CrMo, 50Mn |
|---|---|---|---|
| Warranty: | 5~10 Years | Size: | 6 Inches |
| Tooth: | Helical Tooth | Slew Driver: | AC, DC, Hydraulic |
| Color: | As Requested | Application: | Concentrated Solar Power |
| Highlight: | 42CrMo Electric Slew Drive,Enlcosed House Electric Slew Drive,Enlcosed House Slewing Ring Drive |
||
VE6 CE Certified Slewing Ring Drive For 30-Year Life Time Concentrated Solar Power
Slewing Drive Gearbox Description

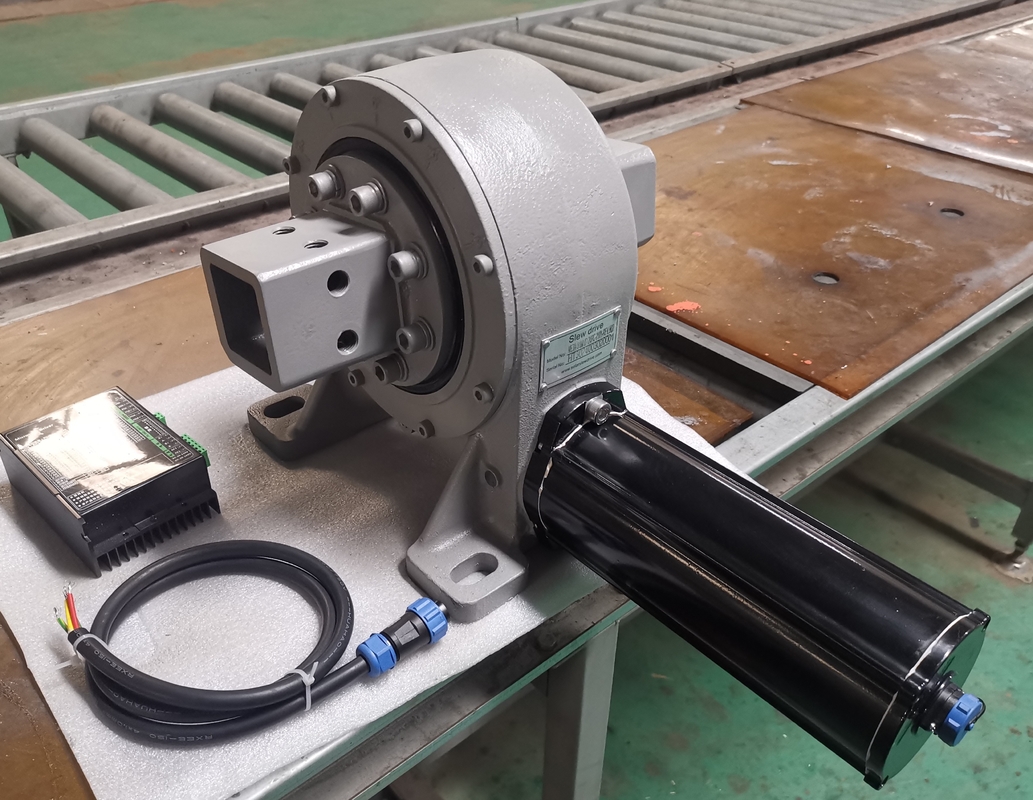

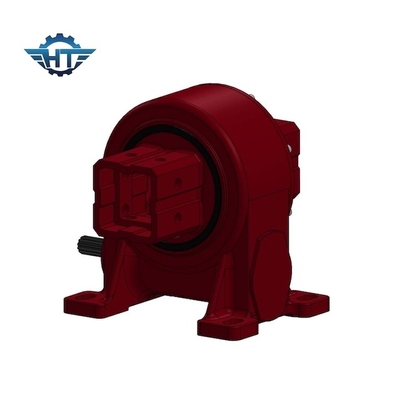

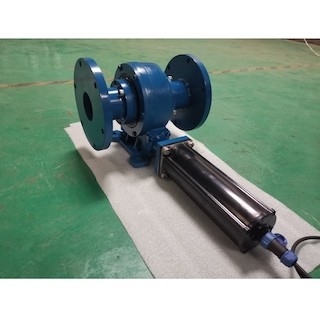

Enclosed housing Slewing ring drive is an all-in-one unit comprised of slew ring, gear, housing, and motor (electric or hydraulic) and it is designed for axial, radial, and moment loading. We developed high backlash worm gear slew drives specially for applications where high accuracy is needed.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Multiple Options Of Worm Gear Motor Slewing Drive
1. Gear reduction ratio 31:1 to 150:1
2. Horizontal, vertical, or combination of multiple axis mounting
3. Single worm or double worm
4. Electric or Hydraulic motor option
5. Housing: Open or Closed
6. Customized input configurations
7. Custom designs per application requirements
Applications
Concentrated solar power-CSP
As the core product of the solar thermal power generation light field system, the tracking system directly affects the heat collection efficiency of the light field, which in turn affects the investment income of the power station. As the core component of the tracking system, the gyratory reducer directly affects the tracking accuracy of the tracking system, so it is called the "heart" of the tracking system.
